Master Fuses

IMPORTANT:

RXA0109536-UN-18AUG10

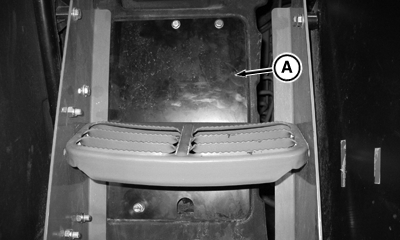

Master Fuses Compartment

RXA0109534-UN-21DEC10

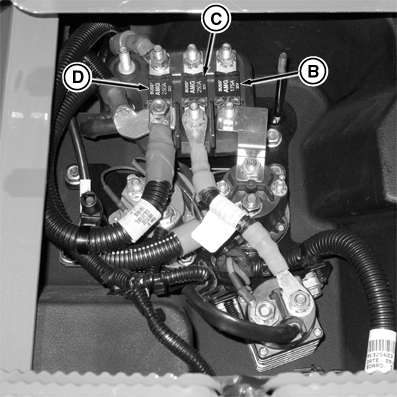

Master Fuses located Under Stairs

A - Master Fuses Cover

B - Backup Hydraulic Pump — 175 Amp Fuse

C - Alternator Battery Relay — 250 Amp Fuse

D - Master Fuse — 250 Amp Fuse

Do not attempt to disassemble master fuses unless instructed by your John Deere™ dealer.

7R Series Tractors have three master fuses which can be accessed through battery compartment cover (A). The 175 amp backup hydraulic pump fuse (B), 250 amp alternator battery relay fuse (C), and 250 amp master fuse (D).
