Load Center Fuses

NOTE: Fold seat backrest down to allow easier access, and allow cab lighting to shine on load center when fuses are being inspected or replaced.

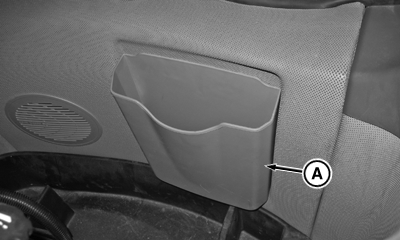

Load center is found directly behind the operator’s seat and just below the cab rear window. To access load center, lift up on Operator’s Manual holder (A).

RXA0109532-UN-18AUG10

Operator’s Manual Holder

A - Operator’s Manual Holder

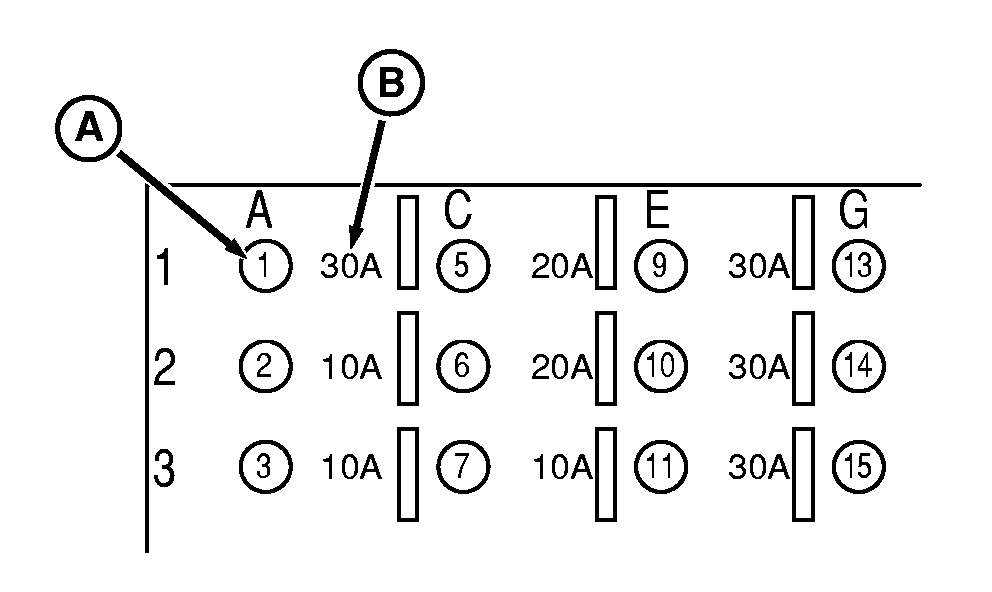

The illustration to the right explains how to read the load center diagram.

RXA0099396-UN-14OCT08

Load Center — Legend

A - Fuse Location Number

B - Fuse Size

IMPORTANT:

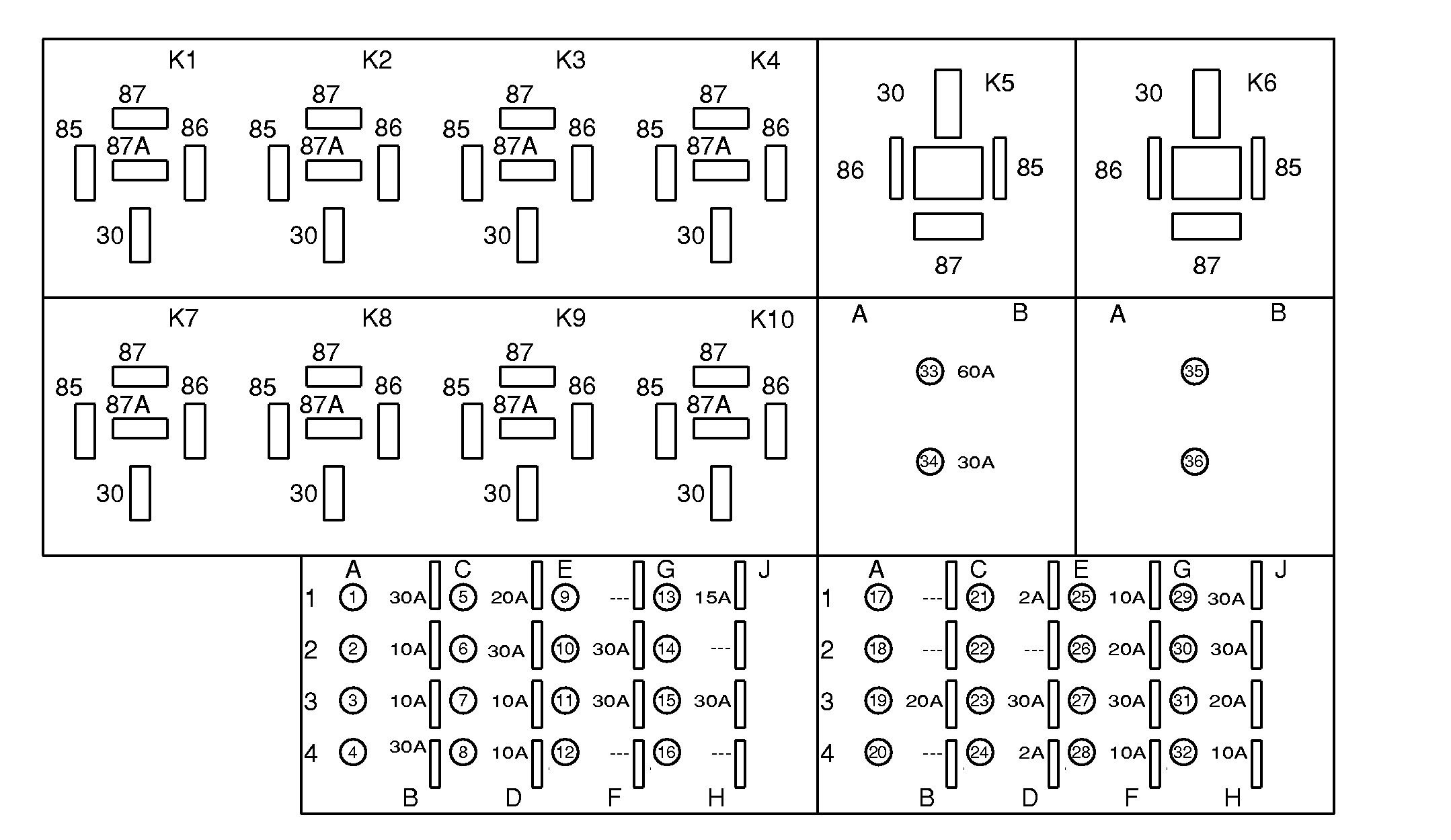

RXA0110992-UN-07JAN11

K1 - ISO Implement Connector Power Relay

K2 - Electronics Relay (If Equipped)

K3 - Electronics Relay (If Equipped)

K4 - Implement Accessory Relay

K5 - AC Switch/Blower Relay

K6 - Accessories Relay

K7 - Warning Horn Relay

K8 - Implement Flood Relay

K9 - Not Used

K10 - Not Used

1 - Key Switch (30 Amp)

2 - Operator Presence Switch (10 Amp)

3 - Air Conditioner (10 Amp)

4 - PAPTOS (If Equipped) (30 Amp)

5 - Cab Switch Module (20 Amp)

6 - PAPTOS (If Equipped) (30 Amp)

7 - Module Telematics Gateway (10 Amp)

8 - Armrest Control Unit (10 Amp)

9 - Not Used

10 - Implement Flood Lights (30 Amp)

11 - Implement Accessory (30 Amp)

12 - Not Used

13 - ActiveCommand Steering (If Equipped) (15 Amp)

14 - Not Used

15 - Convenience Outlet Battery (30 Amp)

16 - Not Used

17 - Not Used

18 - Not Used

19 - Seat Controls (20 Amp)

20 - Not Used

21 - Spare (2 Amp)

22 - Not Used

23 - Convenience Outlet Battery (30 Amp)

24 - Video Camera Power (If Equipped) (2 Amp)

25 - Spare (10 Amp)

26 - Spare (20 Amp)

27 - Convenience Outlet Switched (30 Amp)

28 - Rear Chassis Control Unit (10 Amp)

29 - Spare (30 Amp)

30 - ISO Implement Connector (30 Amp)

31 - Remote Mirror (20 Amp)

32 - Come Home Mode (IVT™/AutoPowr™ Only) (10 Amp)

33 - Accessories Power (60 Amp)

34 - Blower Motor (30 Amp)

35 - Not Used

36 - Not Used

Ensure both negative (-) and positive (+) battery connections are disconnected from both batteries before fuse inspection or replacement.

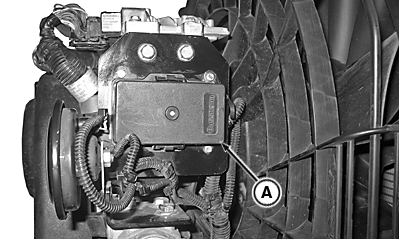

Open hood to locate front load center located in front of cowl. Remove cover (A).

RXA0110994-UN-14OCT10

Remove Cover

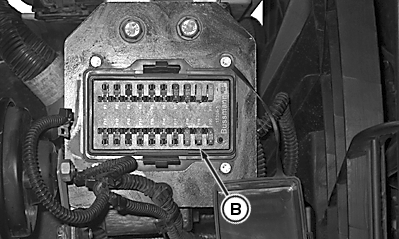

RXA0110996-UN-14OCT10

Fuses

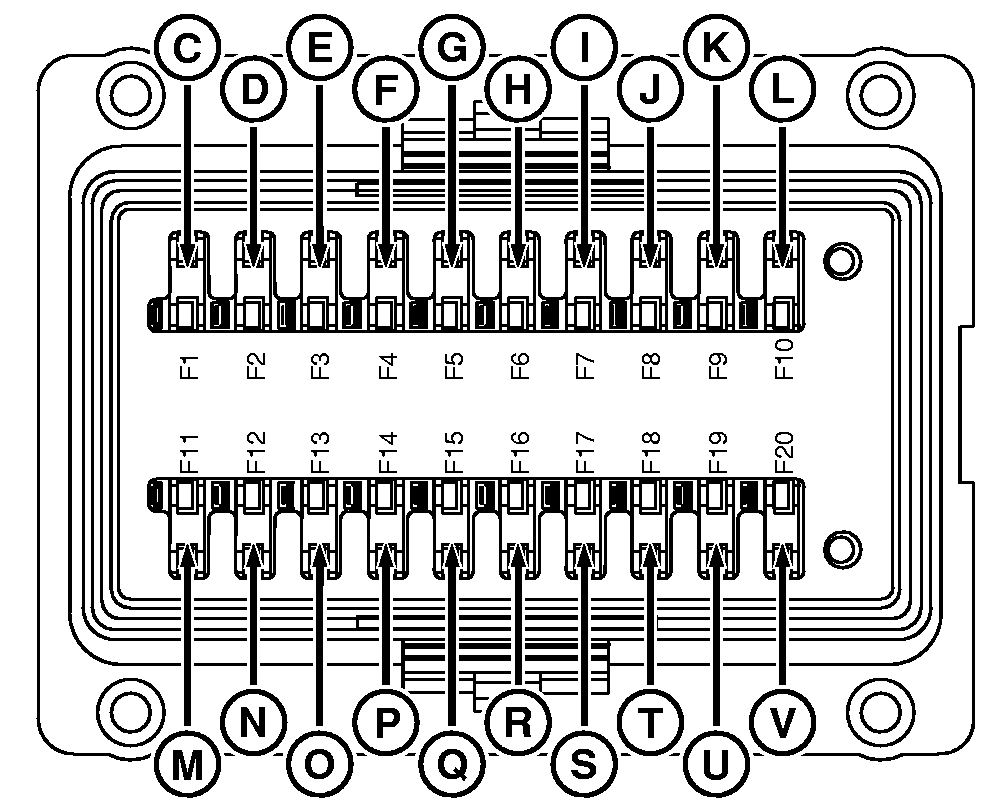

RXA0111380-UN-17DEC10

A - Cover

B - Front Load Center Panel

C - Not Used

D - Not Used

E - Not Used

F - Not Used

G - Not Used

H - Not Used

I - Key Switch (10 Amp)

J - ACS Control Unit (15 Amp)

K - Front Chassis Control Unit 2 (20 Amp)

L - Front Chassis Control Unit 1 (20 Amp)

M - Not Used

N - Not Used

O - Not Used

P - Not Used

Q - Not Used

R - Not Used

S - Not Used

T - ECU 1 (30 Amp)

U - Dosing Pump (15 Amp)

V - Fuel Transfer Pump (15 Amp)
