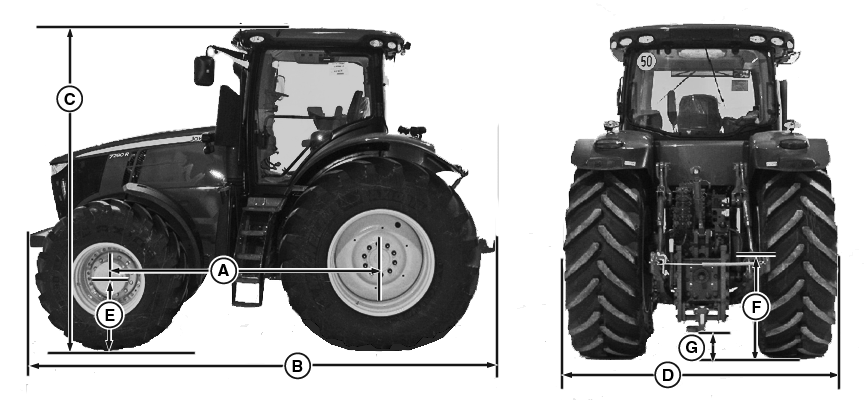

Overall Dimensions

RXA0113533-UN-11FEB11

	7200R	7215R	7230R	7260R	7280R
A - Wheelbase
MFWD Axles	2925 mm (115 in.)
B - Overall Length
Including front weight support, rear hitch, and excluding front suitcase weights	5520 mm (217 in.)			5540 mm (218 in.)
C - Overall Height (Top of Cab)
Group 47 Rear Tires	3245 mm (128 in.)
Group 48 Rear Tires	3357 mm (132 in.)
Group 49 Rear Tires	Not Available			3446 mm (136 in.)
D - Width (Axle Length)
Flanged Axle [100 mm (3.94 in.), 120 mm (4.72 in.) Diameter]	1920 mm (76 in.)
Short Axle [100 mm (3.94 in.), 110 mm (4.33 in.), 120 mm (4.72 in.) Diameter]	2550 mm (100 in.)
Long Axle [100 mm (3.94 in.) Diameter]	2807 mm (110 in.)
Extra Long [100 mm (3.94 in.), 110 mm (4.33 in.), 120 mm (4.72 in.) Diameter]	3012 mm (119 in.)
E - Crop Clearance
MFWD With Group 42 Front Tires	612 mm (24 in.)
MFWD With Group 43 Front Tires	634 mm (25 in.)
MFWD With Group 44 Front Tires	Not Available			668 mm (26 in.)
F - Crop Clearance (Rear Axle Housing)
Group 47 Rear Tires	575 mm (23 in.)
Group 48 Rear Tires	627 mm (25 in.)
Group 49 Rear Tires	Not Available			673 mm (27 in.)
G - Drawbar Clearance
Group 47 Rear Tires	352 mm (14 in.)
Group 48 Rear Tires	420 mm (17 in.)
Group 49 Rear Tires	Not Available			463 mm (18 in.)
