Record Product Identification Number

RXA0113582-UN-14FEB11

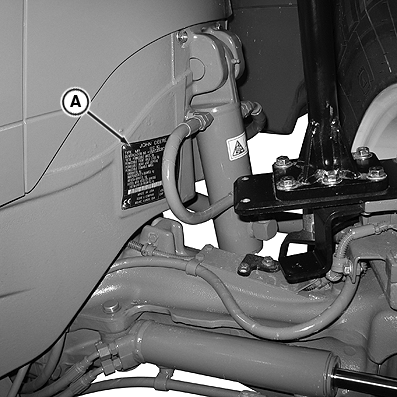

Identification plate (A) is located on right-hand tractor frame.

Product Identification Number

*___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___*

PRODUCT IDENTIFICATION NUMBER (PIN): consists of 17 positions without spaces, dashes, or other interruptions as follows:

Positions 1-3: World Manufacturer Code (WMC) (e.g. 1RW).

Positions 4-7: is the numeric portion of the tractor model number.

Position 8: Model identifier suffix (Additional machine information).

Position 9: Check letter calculated based on the values and positions of the other sixteen characters.

Position 10: Calendar year of manufacture, may be a letter or a number which reflects the calendar year (not model year) of manufacture. The value of this character is specified in the table below.

Characters Used To Designate Year Of Manufacture in Position 10
YEAR	Code
2011	B
2012	C
2013	D
2014	E

Position 11: Transmission Option Code indicated in the table below

Configuration and Transmission Option Codes in Position 11
A	AutoQuad™ PLUS
C	CommandQuad™
D	IVT™/AutoPowr™
R	PowrQuad™ PLUS

Position 12: Additional Manufacturing or Product Information provide additional information about the product and when it was built. If the tractor is a track tractor, the character in position 12 will be a ”9”. Otherwise the character in position 12 will be a numerical zero, ”0”.

Positions 13-17: A serialized number uniquely identifying individual tractors bearing the same model designation. These serialized numbers are generally ordered relative to production sequence, but may be adjusted to accommodate changes in manufacturing priorities, or to provide convenient serialization increments between model years.

Additionally: An asterisk (*) shall immediately precede the first character and immediately follow the last character of the PIN to discourage tampering or altering of the PIN.
