Accessing Diagnostic Trouble Codes

RXA0107882
RXA0107882-UN-24MAY10

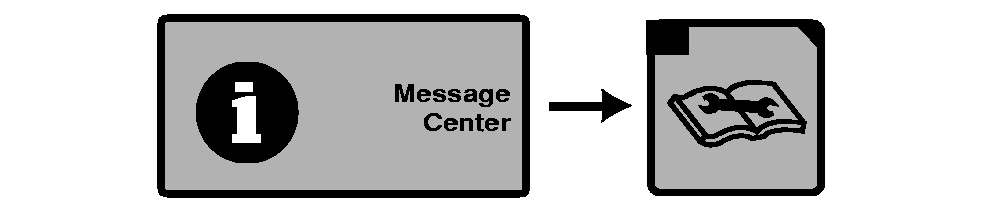

Information → Diagnostic Trouble Codes

RXA0107883
RXA0107883-UN-18AUG10

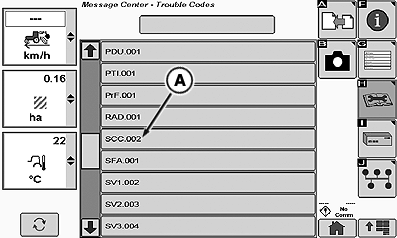

Select Diagnostic Trouble Codes Page

RXA0107884
RXA0107884-UN-18AUG10

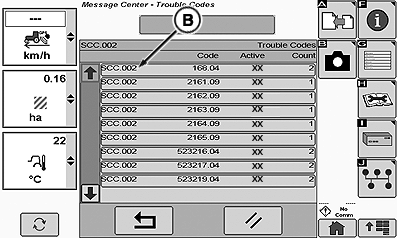

Select Code

RXA0107885
RXA0107885-UN-24MAY10

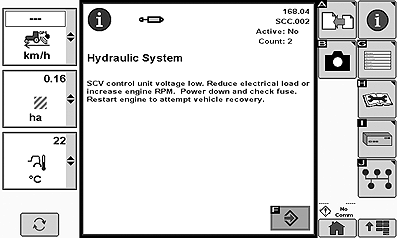

Specific Trouble Code Displayed

A - Controller

B - Code

  1. Select Information icon at CommandCenter™ main menu.

  2. Select Trouble Codes softkey.

  3. Select specific control unit (A) desired.

  4. Select specific code (B).

CommandCenter is a trademark of Deere & Company

ZE59858,000059E-19-20101109
