Front Tire, Fender, and Steering Stop Settings Table Explanation

RXA0112127-UN-07JAN11

A - Tread Spacing

B - Tire Size

C - Eight or Two Position Rim

D - Tread Setting

E - Steering Stop

F - Bracket and Stopper Settings

G - Turning Radius

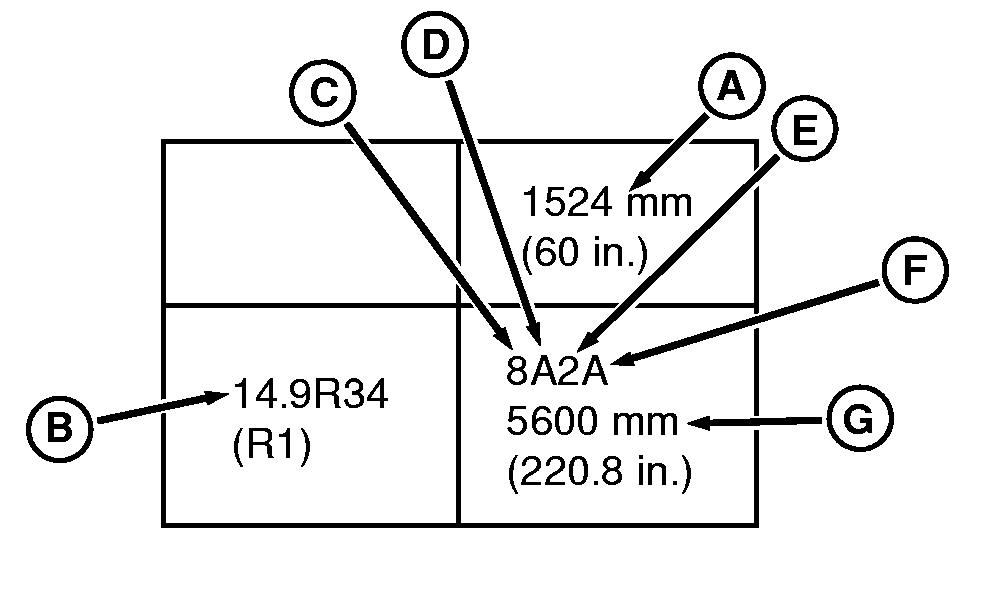

NOTE: This is an explanation of the tables in the next several pages.

The first row across the top of the page lists tread spacing (A) in millimeters and inches.

Column one lists the tire size (B).

The first number (C) in column two identifies if a two or an eight position rim is used. The first letter (D) indicates which diagram to follow from Eight-Position MFWD Wheel Settings. The next number (E) indicates what steering stop position to use from Setting Steering Stop Positions located in this section. The next letter (F) is the bracket position and stopper position setting, which are taken from MFWD Fender Settings—Deluxe Pivoting Fenders located in this section. The last two entries indicate turning radius (G) in millimeters and inches.
