Right Hand Console Controls

RXA0112133-UN-11JAN11

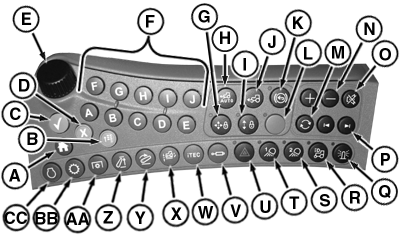

Right Hand Console Controls

A - Home Button

B - Menu Button

C - Confirm Button

D - Cancel Button

E - Thumb Wheel

F - Softkeys

G - Single Lever Control Transport Lock

H - MFWD Auto

I - SCV Transport Lock

J - MFWD ON

K - Brake Assist

L - Not Used

M - Radio Source

N - Radio Volume

O - Radio Mute

P - Radio Preset/Track Controls

Q - Beacon Light

R - Road/Loader Lights

S - Field Lights 2 Selection

T - Field Lights 1 Selection

U - Emergency Flasher Lights

V - SCV Settings

W - iTEC™ Settings

X - Load Depth Settings

Y - Hitch Lower Limit

Z - Hitch Upper Limit

AA - PTO Settings

BB - Transmission Settings

CC - Engine Settings
