Right-Hand Console

RXA0112143-UN-11JAN11

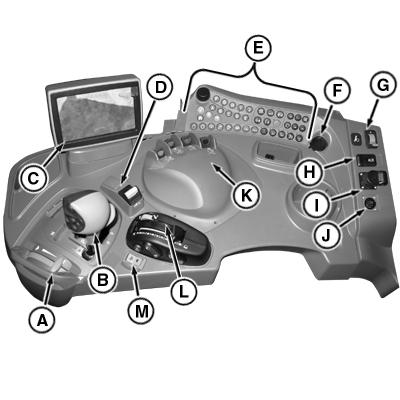

Right Hand Console

A - Engine Speed Control/Hand Throttle

B - Transmission Shift Lever

C - CommandCenter™

D - Front/Rear PTO Switch

E - Right Hand Console Controls

F - Power Plug

G - Secondary Brake Lever

H - Radio Auxiliary Input

I - Accessory Outlet

J - ISOBUS Socket

K - SCV Control Levers

L - Hitch Controls

M - Upshift/Downshift Buttons

IMPORTANT: ISOBUS Socket (J) on the right-hand console, is only to be used with ISO11783 compliant components. Other uses could damage tractor electronic components.

12 volt accessory outlet (I) is used when connecting auxiliary equipment.
