Using External Raise and Lower Switches (If Equipped)

CAUTION:

RXA0109282
RXA0109282-UN-07FEB11

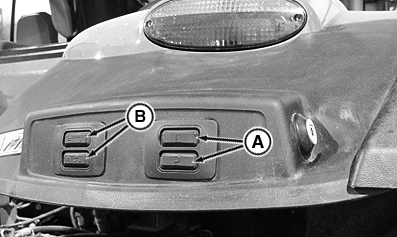

Fender Mounted Switches—Right Fender Shown

RXA0112400
RXA0112400-UN-21DEC10

Stack Mounted Switches

A - External Raise/Lower Switches

B - SCV III Switches

To prevent injury or damage caused by tractor movement, be sure that transmission is in PARK position before using external raise and lower switches. Stay clear of interference points when using external raise and lower switches.

When external switches (A) are pressed hitch moves slowly, but slowly increases speed the longer hitch switch is held down.

Press and hold external switches to raise/lower (A) hitch. Hitch moves at slow speed when using external switches. SCV III extend and retract switches (B) can be connected to hydraulic center link.

NOTE: Hitch command lever cannot be used simultaneously with external raise/lower switch.

ZE59858,00005FC-19-20110215
