Drawbar Load Limits Based on Drawbar Position and Length and PTO Type

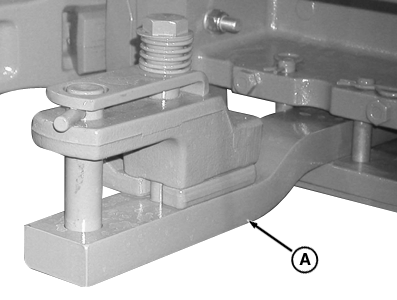

RXA0084670-UN-19OCT05
Category 2 Drawbar

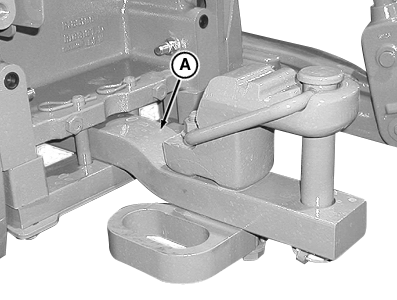

RXA0084672-UN-20OCT05
Category 3 Drawbar

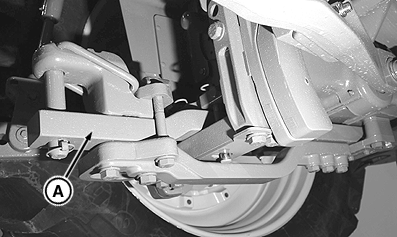

RXA0082198-UN-25JUL05
Category 3 Drawbar and High Vertical Load Drawbar Support
A - Drawbar
NOTE: Category 2 drawbar uses a 33 mm (1.3 in.) attaching pin. Category 3 drawbar uses a 38 mm (1.5 in.) pin.
Drawbar Options available by Model
7200R | 7215R | 7230R | 7260R | 7280R | |
Category 2 | Optional | Optional | Optional | Optional | Optional |
Category 3 | Standard | Standard | Standard | Standard | Standard |
Category 3 HD | Optional | Optional | Optional | Optional | Optional |

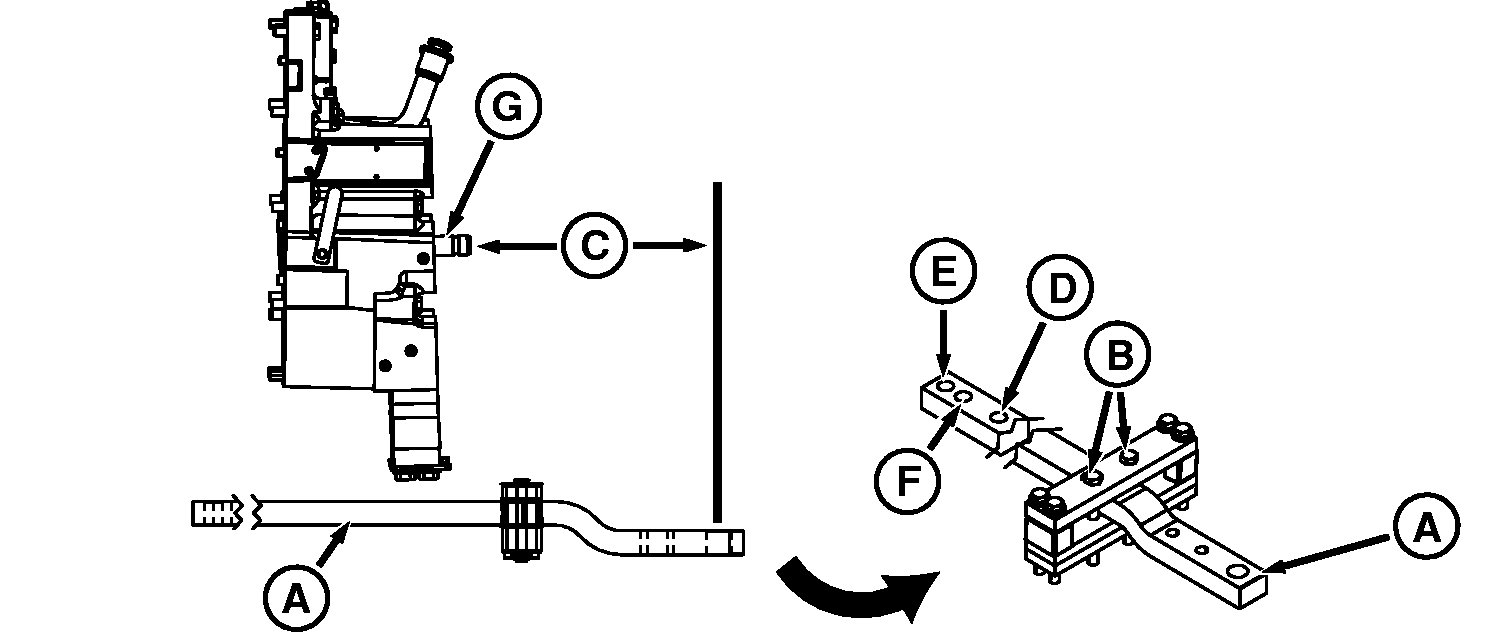

RXA0084666-UN-02NOV05
A - Drawbar
B - Locking Bolts
C - Dimension
D - Short Position
E - Long Position
F - Medium Position
G - PTO Shaft
IMPORTANT: Certain heavy implements may place excessive strain on drawbar (A). Strain is greatly increased by speed and rough terrain. Do not exceed maximum static vertical load on drawbar for a given drawbar length/position, as indicated in table below.
Drawbar Load Limits | |||||
|---|---|---|---|---|---|
Drawbar Length/Position | Dimension | Maximum Vertical Load — Category 2 Drawbar | Maximum Vertical Load — Category 3 Drawbar | Maximum Vertical Load — Category 3 HD Drawbar | PTO Speed |
1— Short/Rear Hole | 254 mm (10 in.) | 2268 kg (5000 lb) | 2766 kg (6100 lb) | 4536 kg (10 000 lb) | Not for PTO |
2—Medium/Middle Hole | 256 mm (14 in.) | 1678 kg (3700 lb) | 2131 kg (4700 lb) | 3493 kg (7700 lb) | 540 rpm |
3—Long/Front Hole | 406 mm (16 in.) | 1430 kg (3150 lb) | 1837 kg (4050 lb) | 2994 kg (6600 lb) | 1000 rpm |
ZE59858,00005FD-19-20110214 |
