Operating the Wagon Hitch

RXA0109284-UN-10AUG10

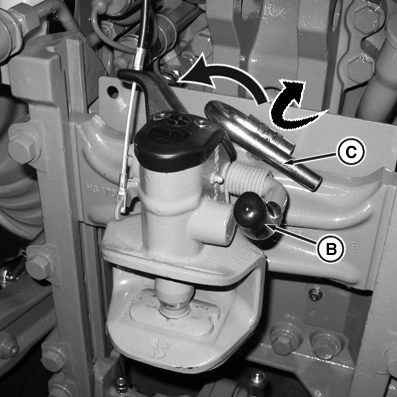

RXA0112501-UN-14DEC10

A - Lever (In Cab)

B - Release Lever

C - Height Adjustment Lever

Wagon hitch can be released from the operator’s seat using lever (A).

CAUTION: Avoid personal injury. Keep hands and fingers from hitch latching mechanism.

The wagon hitch closes automatically when trailer towing eye enters the hitch or can be manually closed using release lever (B).

Wagon hitch height can be adjusted using height adjustment lever (C). To adjust height, rotate height adjustment lever (C) back, then slide lever to the left.
