3 in 1 Hitch System

CAUTION: Avoid personal injury. Keep hands and fingers from hitch latching mechanism.

RXA0109284-UN-10AUG10

RXA0112499-UN-14DEC10

RXA0112497-UN-14DEC10

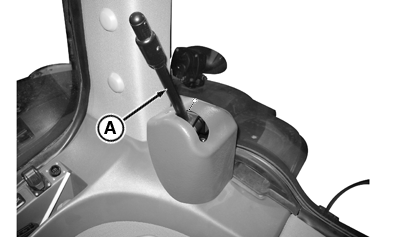

A - Lever (In Cab)

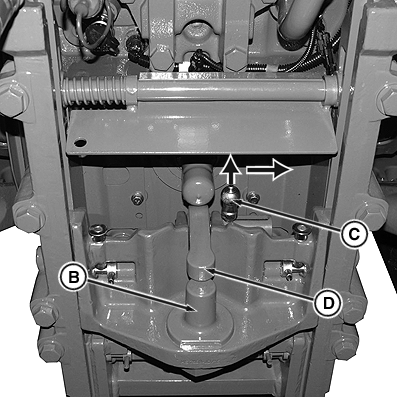

B - Piton Coupling

C - Locking Lever

D - Locking Arm

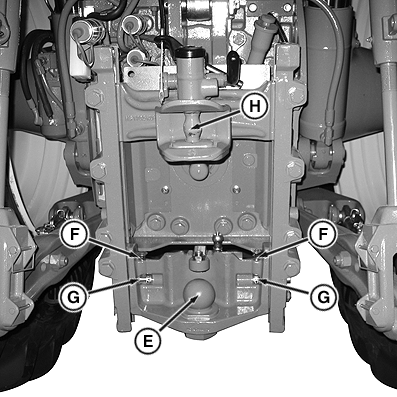

E - Ball Coupling

F - Locking Pins

G - Spring Release Pins

H - Wagon Hitch

The wagon hitch pin closes automatically when trailer towing eye enters the hitch or can be manually closed using lever (A).

To operate piton coupling (B) or ball coupling (E), lift locking lever (C) and slide to the right to raise locking arm (D).

Install piton coupling (B) or ball coupling (E) by lifting locking pins (F) and sliding spring release pins (G). Slide either coupling into hitch rails and install locking pins.

IMPORTANT: If using 35 mm (1.375 in.) PTO or PTO adaptor with 3 in 1 hitch rails, it may be necessary to limit steering angles to prevent PTO drive line from rubbing and/or damaging hitch rails.
