Operating Shiftable 2-Speed Rear PTO (If Equipped)
IMPORTANT:
RXA0112530-UN-14DEC10

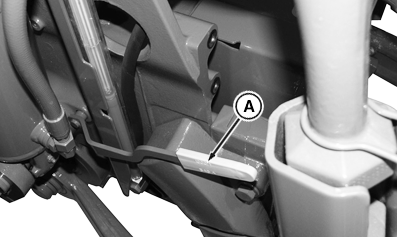

A - PTO Shift Lever
Make sure that selected PTO speed is correct for the implement attached. Incorrect speed can result in serious damage to the implement. Excessive engine rpm can also cause excessive PTO speeds resulting in implement damage.IMPORTANT: Implements can be operated at 540 rpm only if the power input never exceeds 60 kW (80 hp). Operating PTO at lower speeds under heavy load could damage PTO.
IMPORTANT: Do not attempt to shift PTO speeds when PTO shaft is turning or PTO clutch is engaged. Damage to PTO shift collars may result.
Push down and forward on rear PTO switch to engage PTO clutch. PTO indicator will show PTO engagement on display.
Push the PTO shift lever (A) down to shift to 540 rpm. Pull the PTO shift lever up to shift to 1000 rpm.
