External Switches

RXA0112400
RXA0112400-UN-21DEC10

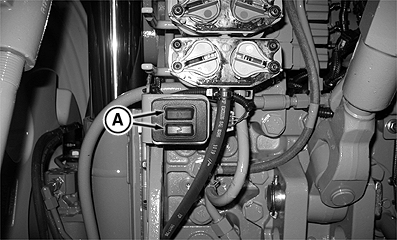

SCV Stack Mounted Rear Hitch Raise/Lower Switches

A - Hitch External Stack Mounted Switch

Tractors without fender extensions have external switches (A) mounted on the valve stack.

Tractors with optional fender extensions may have optional raise switch (C) and lower switch (D) on rear fenders. SCV III extend (A) and retract (B) switches are available for a hydraulic center link. External rear PTO switch (E) is also available.

RXA0108234
RXA0108234-UN-28JUN10

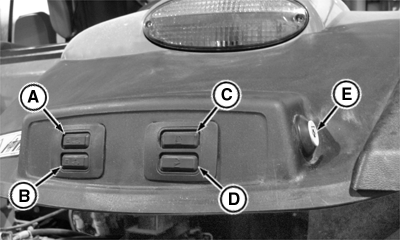

Fender Mounted Rear Hitch Switches

RXA0109659
RXA0109659-UN-23AUG10

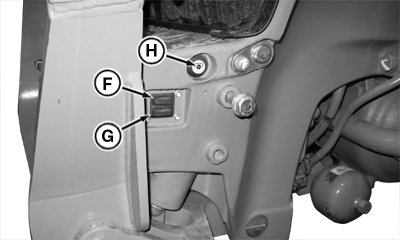

Front Hitch Raise/Lower Switches

A - Rear SCV Extend (If Equipped)

B - Rear SCV Retract (If Equipped)

C - Rear Hitch Raise Switch

D - Rear Hitch Lower Switch

E - Rear PTO Switch (If Equipped)

F - Front Hitch Raise Switch

G - Front Hitch Lower Switch

H - Front PTO Switch (If Equipped)

Tractors equipped with front hitch may have external raise switch (F) and lower switch (G). Tractors with front PTO may have an external front PTO switch (H).
