Adjusting Set Speeds

CAUTION: Avoid unexpected rapid acceleration. Check and adjust set speeds before putting tractor in motion.

Turn key switch to ”RUN” position.

Move left hand reverser out of ”Park” position. Forward and reverse set speeds will scroll on corner post display pausing at each speed for 2 seconds.

Adjust each speed when it displays by rotating set speed adjuster on speed control lever forward to increase the set speed value or rearward to decrease it.

NOTE: Set speed adjustments may affect the corresponding set speed of the opposite direction. (See Adjusting Reverse/Forward Speed Ratio in this section.)

RXA0112846-UN-27JAN11

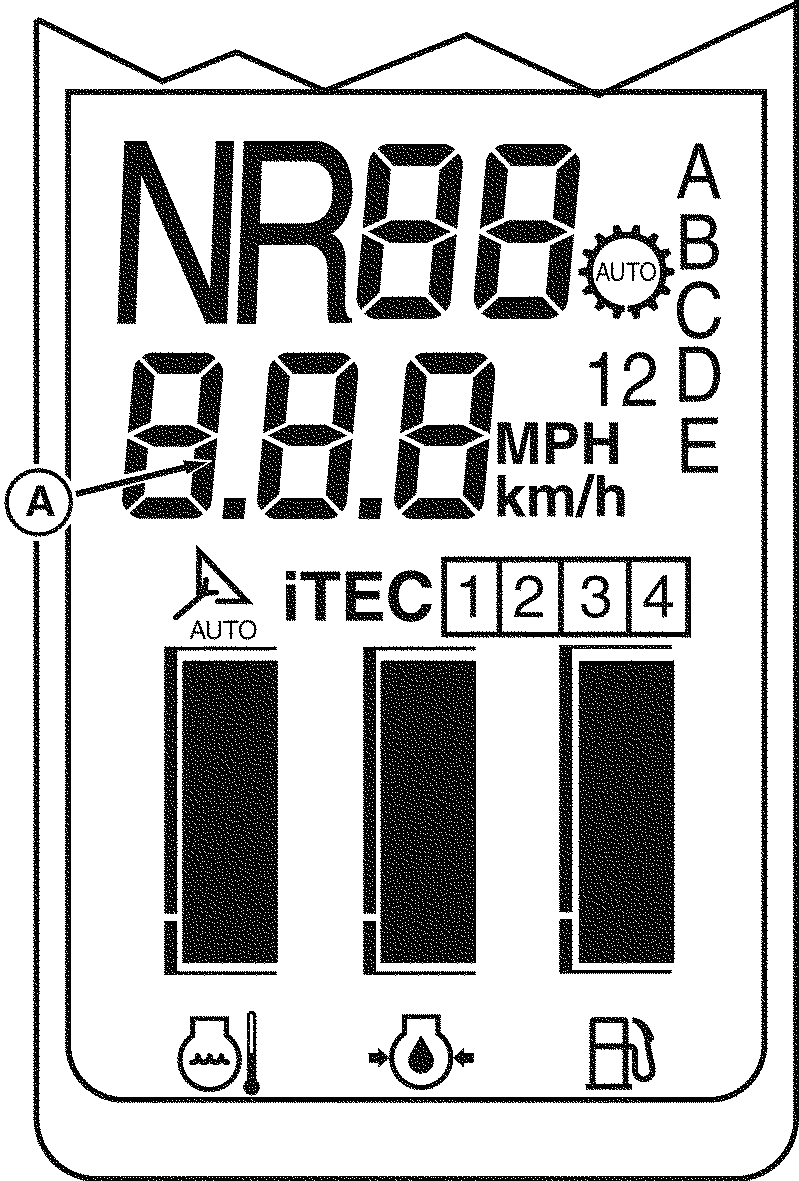

Corner Post Display

RXA0112847-UN-14JAN11

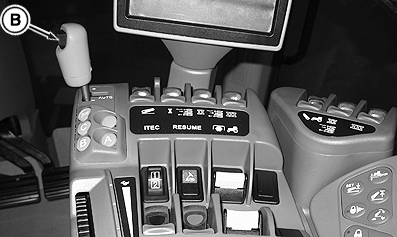

Right-Hand Reverser Shown

A - Set Speed

B - Set Speed Adjuster

On the corner post display, the set speed of a selected speed band is displayed in orange and the ground speed of the tractor is displayed in white letters. Set speed can be adjusted while the tractor is moving by rotating set speed adjuster (B). Increasing set speed value will increase ground speed. Decreasing set speed value will decrease ground speed. New set speed (A) will indicate on display.

Select a set speed that is approximately 3.2 km/h (2 mph) higher than the desired working speed in order to obtain maximum productivity in applications where a precise forward speed is not critical, such as plowing. The tractor will reach the higher set speed value during a no load or light load condition.

RXA0112769-UN-04JAN11

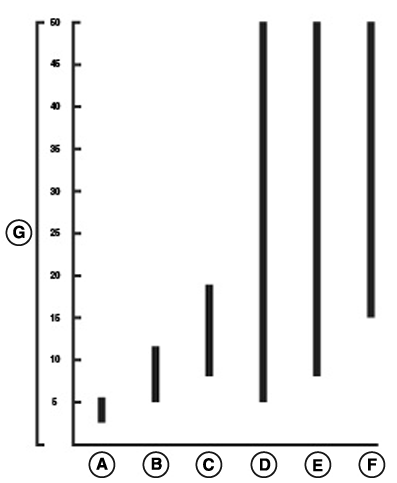

Set Speeds For Given Gears (Group 48 Tires)

A - A Range

B - B Range

C - C Range

D - BCDE Range

E - CDE Range

F - DE Range

G - Set Speeds

Set Speeds For Given Gears (Group 48 Tires)
