Check Swinging Drawbar for Wear

CAUTION: Parts that have reached or exceeded their wear limit must be replaced with new parts.

RXA0113608-UN-09FEB11

RXA0113610-UN-07FEB11

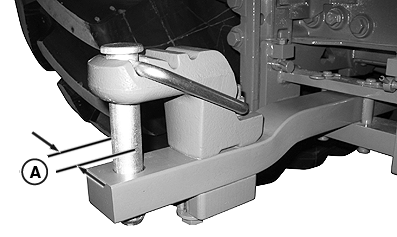

A - Pin Diameter

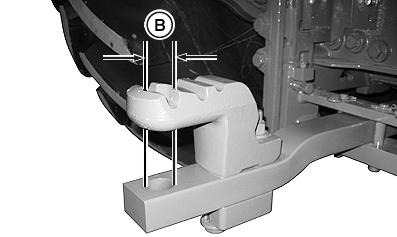

B - Receiver Hole Diameter

Item	Measurement	Specification
Swinging Drawbar, Pin	Wear limit or minimum diameter	29.5 mm 1.16 in.

Check diameter (B) of the pin receiver hole.

Item	Measurement	Specification
Top and bottom receiver holes (measured in direction of travel)	Wear limit or maximum permitted diameter	35.0 mm (oval) 1.38 in. (oval)
