Lubricate 3 in 1 Hitch and Check for Wear

CAUTION: Parts that have reached or exceeded their wear limit must be replaced with new parts.


Wagon Hitch

RXA0113614
RXA0113614-UN-07FEB11

RXA0113616
RXA0113616-UN-07FEB11

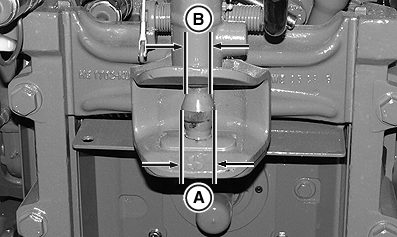

A - Large Diameter

B - Small Diameter

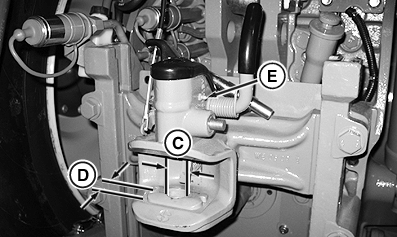

C - Receiver Hole Diameter

D - Wear Plate Thickness

E - Grease Fitting

Specifications

Large Diameter (A)

36 mm (1.42 in.) Minimum

Small Diameter (B)

27 mm (1.06 in.) Minimum

Receiver Hole Diameter (C)

34 mm (1.33 in.) Maximum

Wear Plate Thickness (D)1

6 mm (0.24 in.) Minimum

Lubricate grease fitting (E).

LX1042085
LX1042085-UN-26FEB07

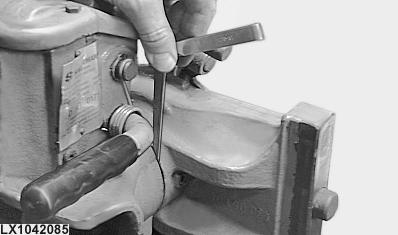

Gap "X"

LX1042084
LX1042084-UN-26FEB07

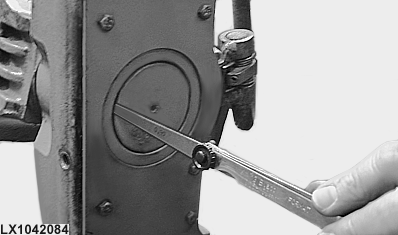

Bearing Play "Y"

Replace retaining wire if gap (X) is greater then 3 mm (0.118 in.)

IMPORTANT: If bearing play (Y) is greater than 1.5 mm (0.059 in.) the entire wagon hitch must be replaced with a new hitch.


Couplings

RXA0113618
RXA0113618-UN-07FEB11

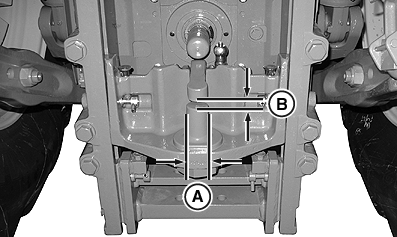

Piton Coupling

RXA0113620
RXA0113620-UN-07FEB11

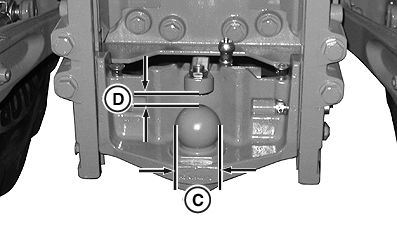

Ball Coupling

A - Pin Diameter

B - Gap

C - Ball Diameter

D - Gap

Specifications

Pin Diameter (A)

10 mm (0.39 in.) Minimum

Gap (B)

41.5 mm (1.63 in.) Maximum

Ball Diameter (C)

4 mm (0.16 in.) Minimum

Gap (D)

78 mm (0.39 in.) Maximum

1 Minimum Permitted Thickness
