Using Rear Wheel Weights on Flanged Axles

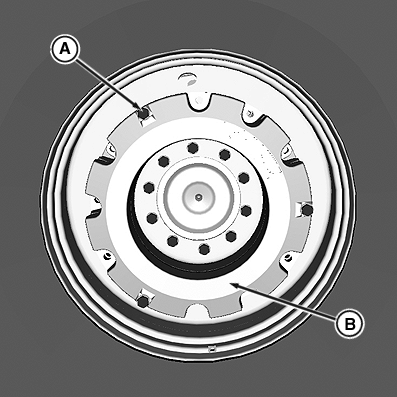

RXA0113869-UN-09FEB11

A - Wheel Weight Cap Screw

B - 205 kg (452 lbs) Wheel Weight

A 75 kg (165 lbs) starter weight must be attached to wheel disk using three cap screws before 205 kg (452 lbs) weights (B) can be attached. One 205 kg (452 lbs) weight can be attached to the inside of the rim. Two 205 kg (452 lbs) weights can be attached to the outside of the rim.

IMPORTANT: 635 kg (1400 lbs) wheel weights cannot be used on flanged axles.

Item	Measurement	Specification
Wheel Weight Cap Screws	Torque	610 N·m (450 lb-ft)
