Remote Software Updates (If Equipped)

Service ADVISOR™ Remote (SAR) provides the ability to a John Deere™ dealer technician or company person to remotely update vehicle software using John Deere™ telematics infrastructure. The Service ADVISOR™ Remote User Interface on CommandCenter™ informs vehicle operator when new software is available for download or installation. The interface allows the operator to accept or cancel a software download. When the software update has successfully downloaded, the operator will be able to initiate the software installation. The CommandCenter™ interface informs the vehicle operator about programming status and final result.

RXA0116558-UN-16MAY11

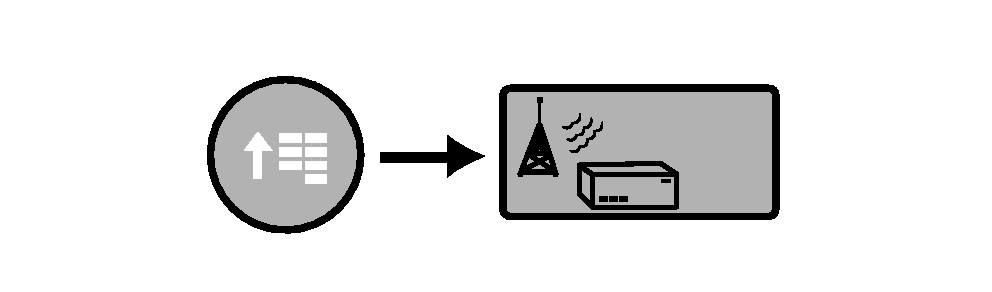

CommandARM™ Menu Button → Remote Software Updates Softkey

1. Select Menu button.

2. Select Remote Software Updates softkey.

3. When Software Updates page displays, the operator can:

   • Reject download
   • Download software
   • Install software by following the on-screen instructions
