Using Secondary Brake (If Equipped)

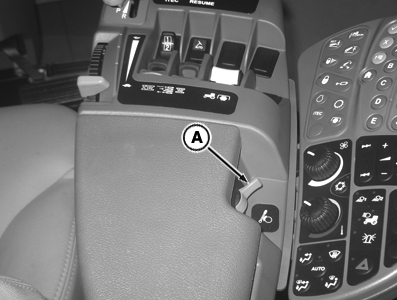

RXA0100123-UN-26JAN09

A - Secondary Brake Lever

NOTE: Lever is spring loaded to off position so must be held back to engage brake.

Push lever (A) up to engage secondary brake; brake indicator (on display) will light. To release secondary brake, release lever.
