Using Passenger Seat

RXA0107055-UN-01APR10

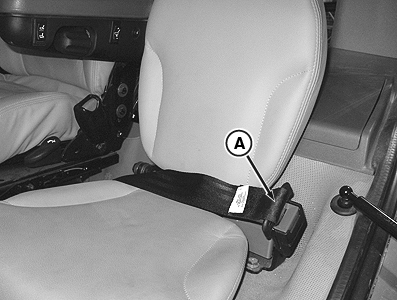

Passenger Seat

RXA0107057-UN-03JUN10

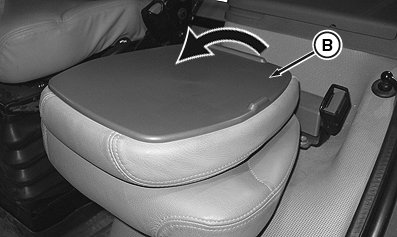

Passenger Seat Converted To Writing Surface

RXA0107061-UN-01APR10

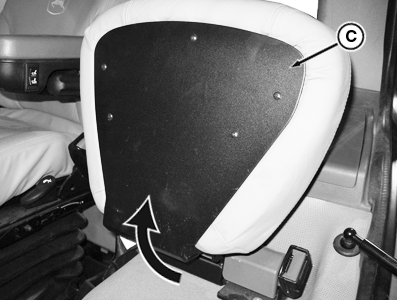

Passenger Seat Folded Up For Easier Egress

A - Seat Belt

B - Writing Surface

C - Flip Up Seat

CAUTION: This passenger seat has been provided only for training operators or diagnosing machine problems. Keep all other riders off the tractor and equipment. Always wear seat belts (A).

Passenger seat back tilts forward to be used as a writing surface (B). Flip up seat (C) tilts up allowing easier entrance and egress.
