Replace Extremity Warning Light Bulb (If Equipped)

1.
   RXA0083977-UN-14SEP05


   RXA0083976-UN-14SEP05

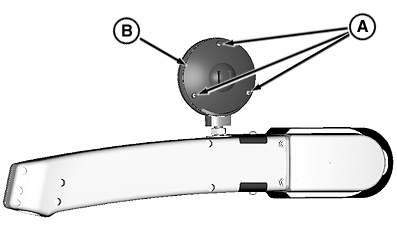

   A - Screws

   B - Lens Cover

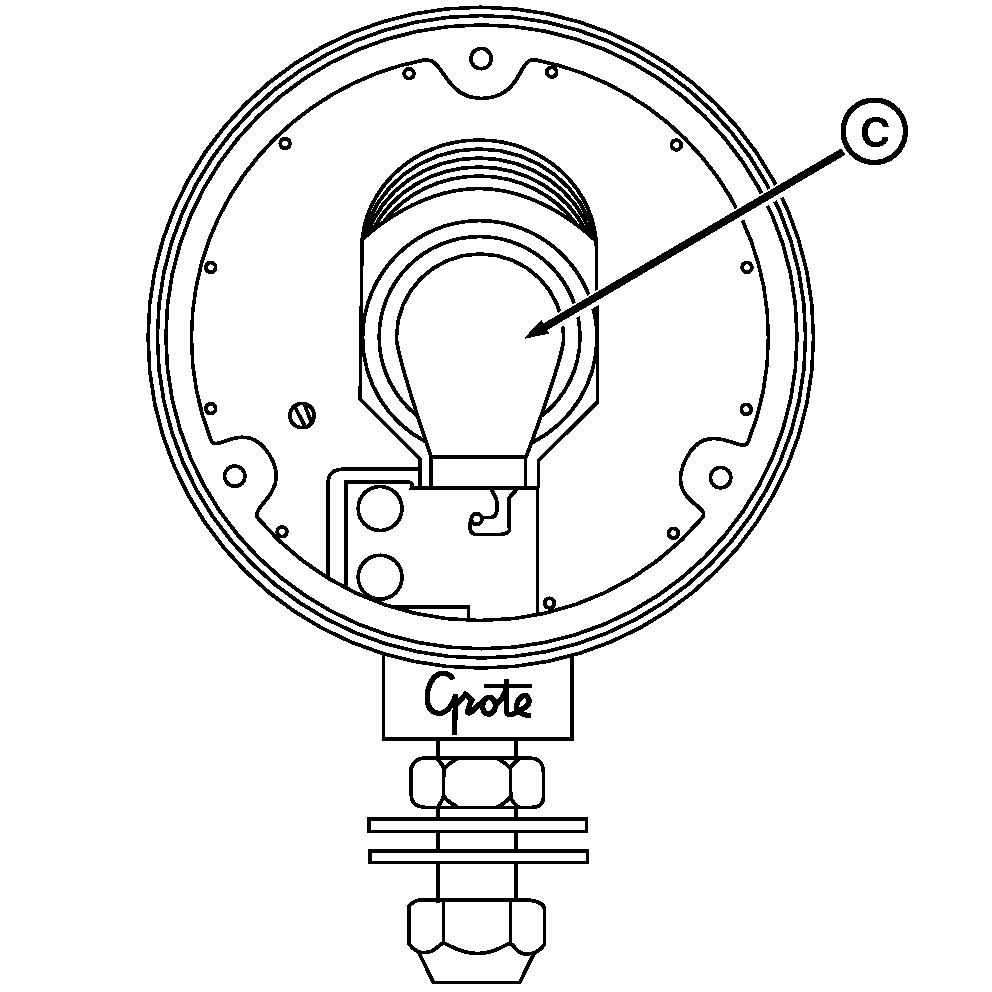

   C - Light Bulb

   Remove screws (A).

---




2. Remove lens cover (B).

3. Push in and turn counterclockwise to remove light bulb (C).

4. Install new bulb in reverse order of removal.
