Operating Front Wiper and Washer

RXA0098437
RXA0098437-UN-22DEC08

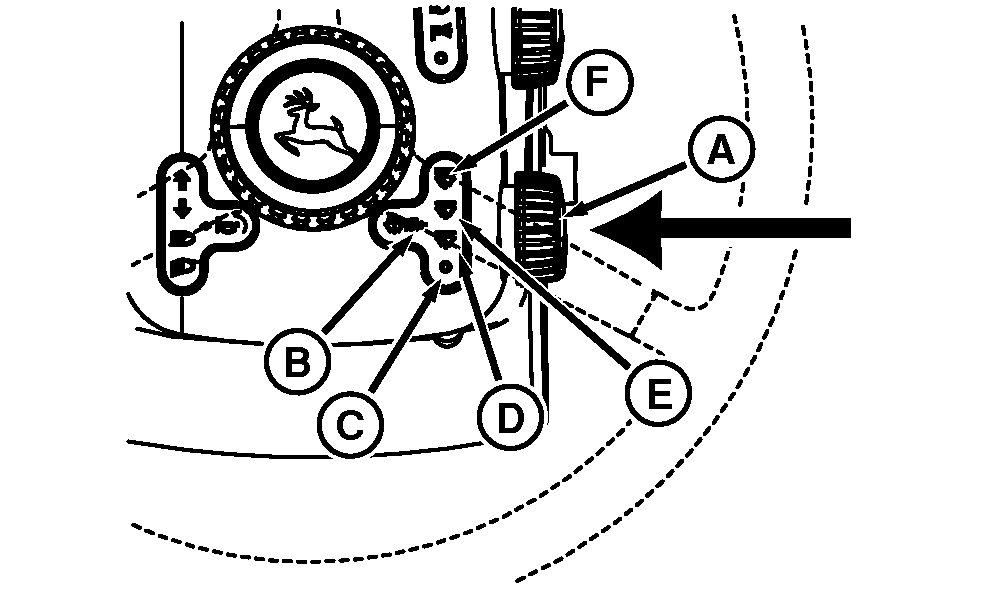

Rotate Switch

RXA0109724
RXA0109724-UN-18AUG10

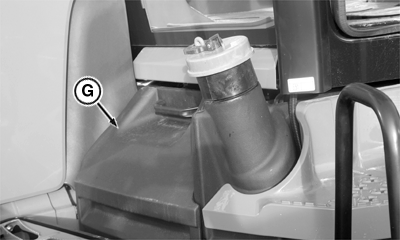

Remove Cover

RXA0109379
RXA0109379-UN-16AUG10

Windshield Washer Reservoir

A - Front Wiper/Washer Knob

B - Washer Icon

C - Off

D - Intermittent Speed

E - Slow Speed

F - Fast Speed

G - Battery Box Cover

H - Windshield Washer Reservoir

Wiper/washer knob (A) has four positions:

  • C—OFF
  • D—Intermittent Operation
  • E—Slow Speed
  • F—Fast Speed

Push knob in to operate windshield washer.

Remove battery box cover (G) to fill reservoir (H) with non-freezing windshield washer fluid.

OURX935,0000004-19-20100831
