Shortcut Buttons

RXA0104070-UN-24JUL09

Shortcut Buttons

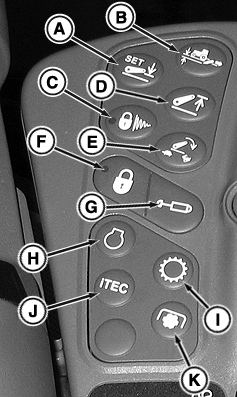

Listed below are CommandARM Controls Shortcut buttons that allow operator to go directly to a specific task.

• A — Hitch Lower Limit
• B — Hitch Load Depth Settings
• C — Hitch Transport Lock/Hitch Dampening
• D — Hitch Upper Limit
• E — Hitch Drop Rate
• F — SCV Lock
• G — SCV Settings
• H — Engine
• I — Transmission
• J — iTEC Settings
• K — PTO Settings
