Draining PowerShift (PST) Transmission and Cleaning Filter

1. Place drain pan under transmission drain plug.

2. Remove drain plug (A).


   RXA0110092-UN-26AUG10

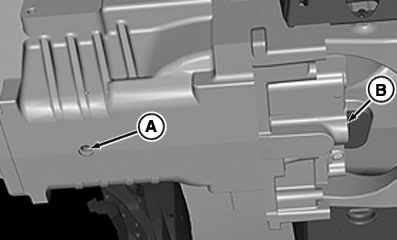

   PST Transmission and Filter Screen

   A - Drain Plug

   B - Filter Screen Plug

---




3. Retain drain plug for reinstallation.

4. Remove large transmission filter screen plug (B).

5. Remove filter screen and wash carefully in solvent. Blow dry with compressed air before reinstalling screen.

6. Replace transmission screen and drain plug.

7. Dispose of used oil in accordance with local laws and ordinances.

8. For tractors equipped with Independent Link Suspension, proceed to Draining Independent Link Suspension (If Equipped).

   For tractors not equipped with Independent Link Suspension, proceed to Cleaning Hydraulic Oil Suction Screen in this section.
