Draining Independent Link Suspension (If Equipped)

  1. Place drain pan under Independent Link Suspension drain plug.

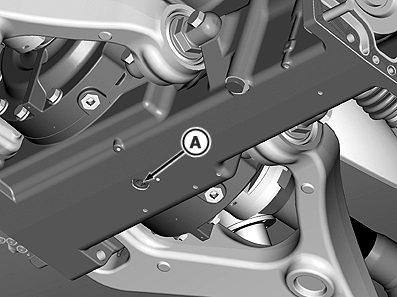

    RXA0110830
    RXA0110830-UN-16SEP10

    Drain Independent Link Suspension

    A - Drain Plug


  2. Remove drain plug (A).

  3. Retain drain plug for reinstallation.

  4. After oil is completely drained, reinstall drain plug.

  5. Dispose of used oil in accordance with local laws and ordinances.

  6. Proceed to Cleaning Hydraulic Oil Suction Screen in this section.

OURX935,000004F-19-20100920
