Using Auxiliary Power Strip And Electrical Outlets (If Equipped)

RXA0099078-UN-25FEB09

Auxiliary Power Strip

RXA0085747-UN-26JAN06

Auxiliary Power Strip Convenience Outlet

RXA0104660-UN-10SEP09

Accessory Electrical Outlet On Right-Hand Console

RXA0104658-UN-10SEP09

Accessory Electrical Outlet In Storage Box

RXA0104664-UN-10SEP09

Accessory Electrical Outlet

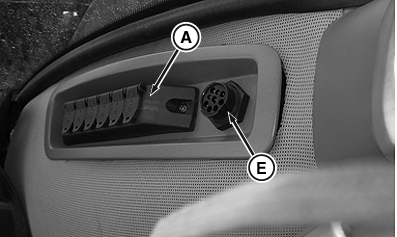

A - Auxiliary Power Strip

B - Battery (Unswitched)

C - Ground

D - Battery (Switched)

E - Diagnostic Connector (DEALER USE ONLY)

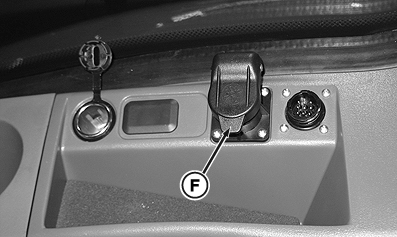

F - Accessory Outlet (Right-Hand Console)

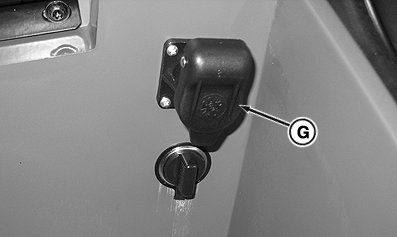

G - Accessory Outlet (In Storage Box)

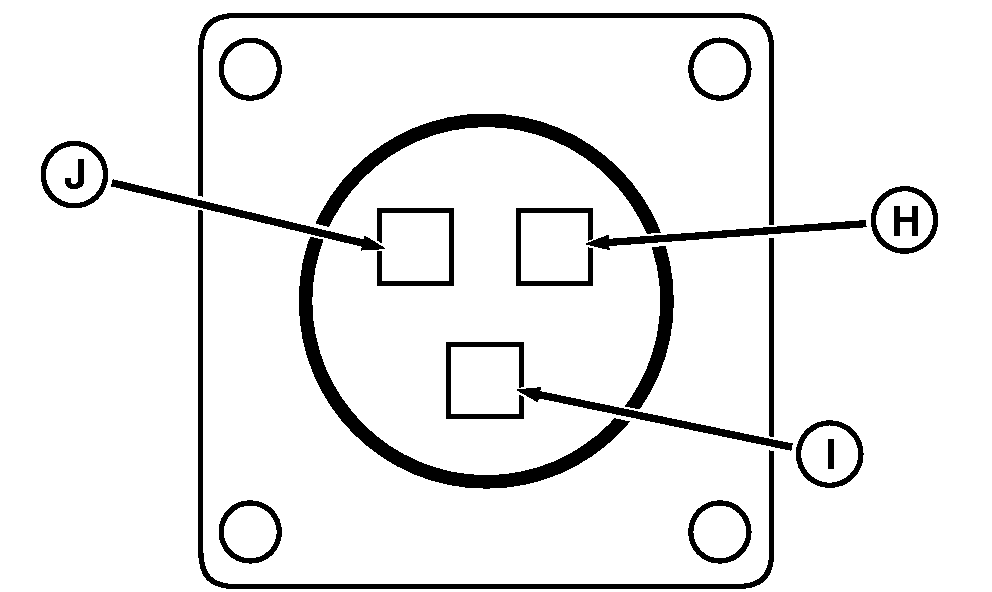

H - Battery (Unswitched)

I - Ground

J - Battery (Switched)

IMPORTANT: Power strip does not have a surge suppressor. Electrical equipment with program memory requires protection from damage of electrical surges and spikes.

The power strip (A) provides six outlets of 12-volt power with grounds for use when connecting auxiliary equipment. This power is 30 amp switched and 30 amp unswitched.

Adapters plug directly into power strip. On the adapter, remove small tab at end of slot on plug and rotate plug 180° to change to switched power.

The following adapters are available from your John Deere™ dealer: cigarette lighter adapters, three-way convenience adapters, and standard adapters.

NOTE: Outlets are protected by 30-amp fuses.

12-volt accessory outlets (F) are located on right-hand console or outlet (G) in the storage box. They are used for connecting auxiliary equipment.

Pin (H) provides battery power (hot), pin (I) provides ground, and pin (J) provides (key) switched power. For additional information on connections, see appropriate auxiliary equipment installation instructions or your John Deere dealer.
