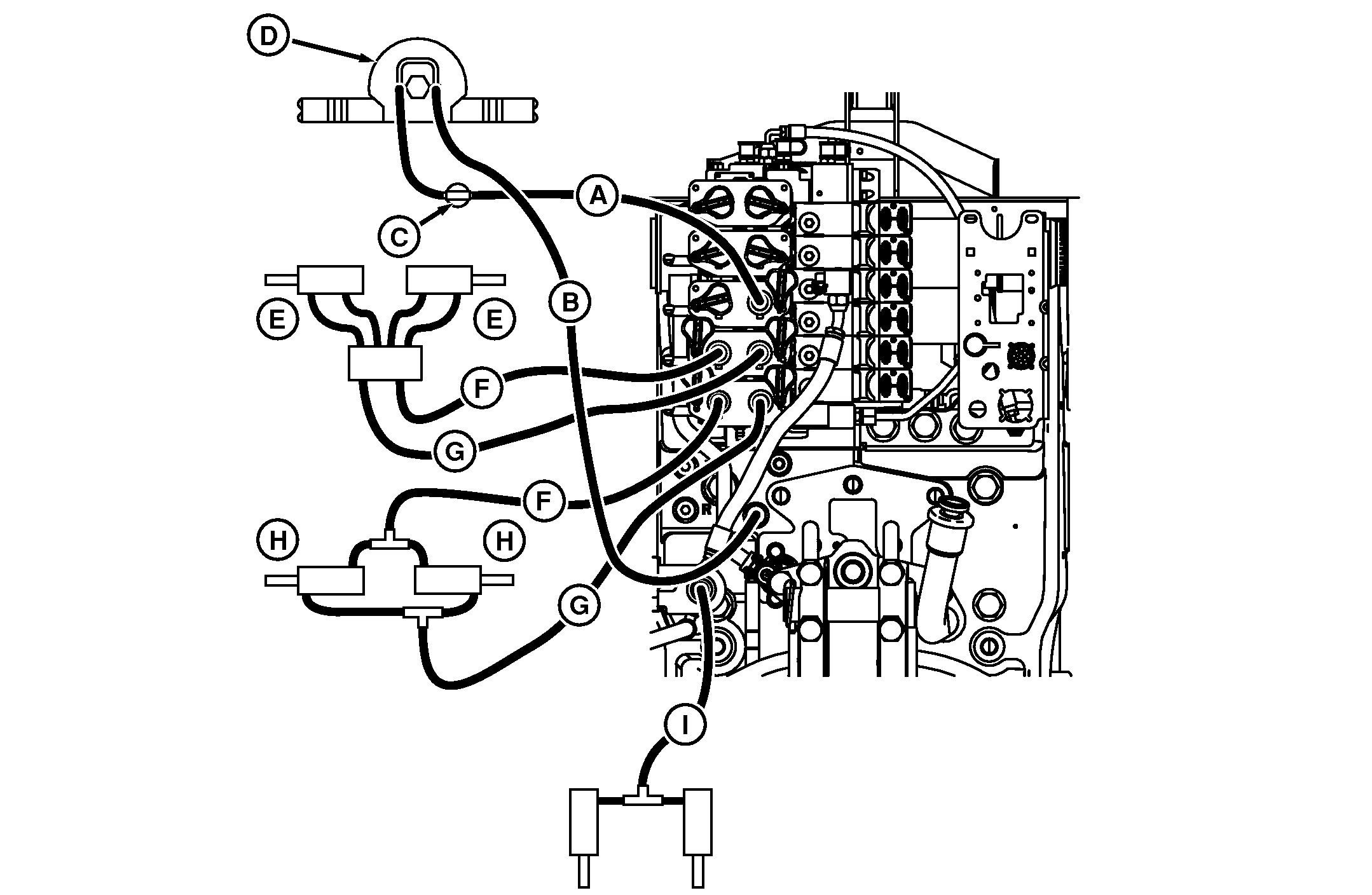

Implement Connection, Example 5—Planter with Vacuum Motor, Return Line to Motor Return and Lift Assist

RXA0096597-UN-13AUG08

A - Pressure Line

B - Return Line

C - Flow Control Valve (Wide Open)

D - Vacuum Motor

E - Fold

F - Extend Coupler Line

G - Retract Coupler Line

H - Markers

I - Lift Assist

In this application vacuum motor (D) receives pressure oil from the SCV retract port. Return oil is routed to power beyond return port. If return hose is equipped with special return hose tip, it can be connected directly to SCV #3 extend port. When the motor is shut off, the SCV lever is moved to float position to allow motor to coast to a stop. Moving lever to neutral will cause motor to stop abruptly and may damage seals.

Control valve (C) is wide open and flow is controlled by tractor control panel. If valve is used to control oil flow, pump will operate at maximum pressure which may cause overheating of hydraulic oil if operating at same time outside air temperature is high.

Lift assist cylinder oil is connected to auxiliary hitch valve port which is controlled by hitch command lever settings in the cab.
