CommandARM™ Controls

RXA0099690-UN-31OCT08

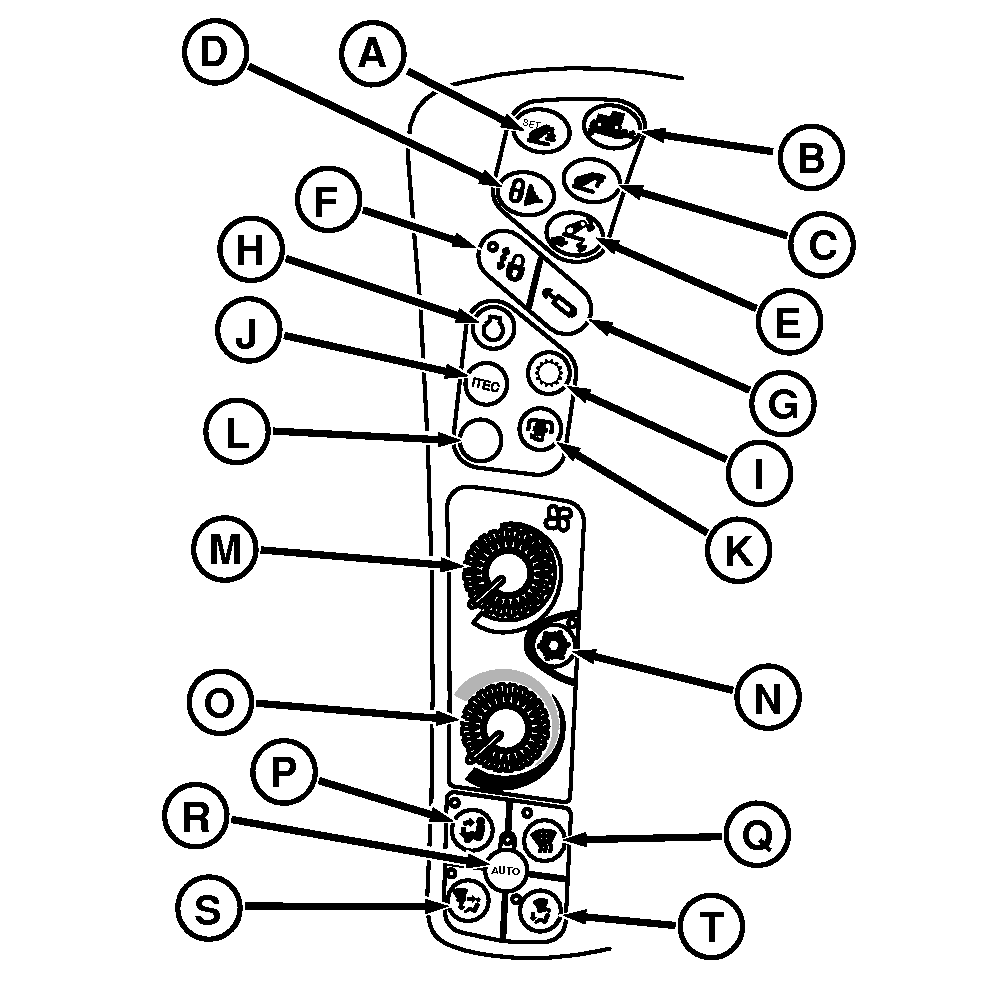

CommandARM Controls — Left Side

A - Depth Set Shortcut Button

B - Load Depth Shortcut Button

C - Upper Limit Shortcut Button

D - Hitch Lock/Dampening Shortcut Button

E - Drop Rate Shortcut Button

F - Transport Lock—SCV

G - SCV Settings

H - Engine Settings

I - Transmission Settings

J - iTEC Settings

K - Rear PTO Settings

L - Not Used

M - Fan Speed Control*

N - Air Conditioner Button *

O - Temperature Control Knob *

P - Cab And Floor Vent*

Q - Defrost *

R - ClimaTrak™ *

S - Defrost, Cab And Floor Vent*

T - Windshield And Floor Vent*

Controls indicated with an asterisk (*) are installed only on ClimaTrak™ equipped tractors.

RXA0099150-UN-25SEP08

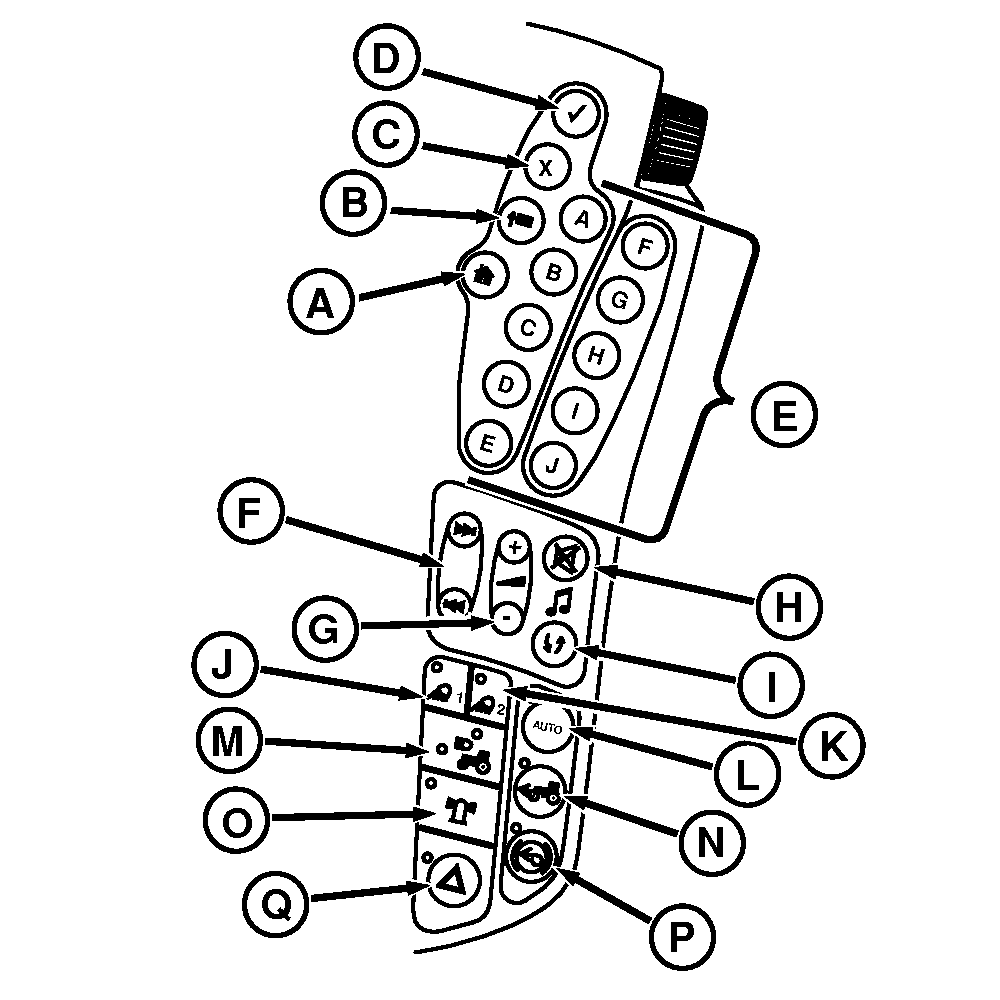

CommandARM Controls—Right Side

A - Home Button

B - Menu Button

C - Cancel Button

D - Confirm Button

E - Softkeys

F - Radio Preset/Track Control

G - Radio Volume

H - Radio Mute

I - Radio Source

J - Field Lights 1 Selection

K - Field Lights 2 Selection

L - MFWD AUTO

M - Road/Loader Lights

N - MFWD ON

O - Beacon Light

P - Brake Assist

Q - Emergency Flashers
