Placing Front Hitch Arms In Stowed or Extend Position

1. Remove retaining pin (A) and pin (B).

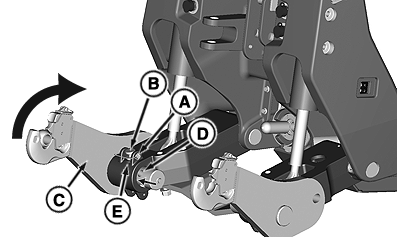

   RXA0113294-UN-24JAN11

   Front Hitch Arms In Extended Position


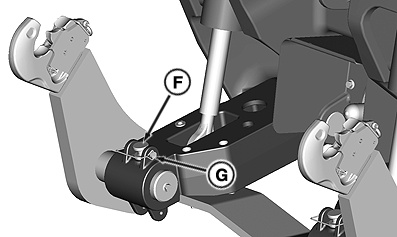

   RXA0113295-UN-24JAN11

   Front Hitch Arms In Stowed Position

   A - Retaining Pin

   B - Pin

   C - Arm

   D - Hole

   E - Casting Hole

   F - Pin

   G - Retaining Pin

---




2. Slide arm (C) out and up aligning hole (D) with casting hole (E).

3. Install pin (F) and retaining pin (G). Arm is now in stowed position.

4. Repeat for opposite front hitch arm.

5. Reverse procedure to place arms in extend position.
