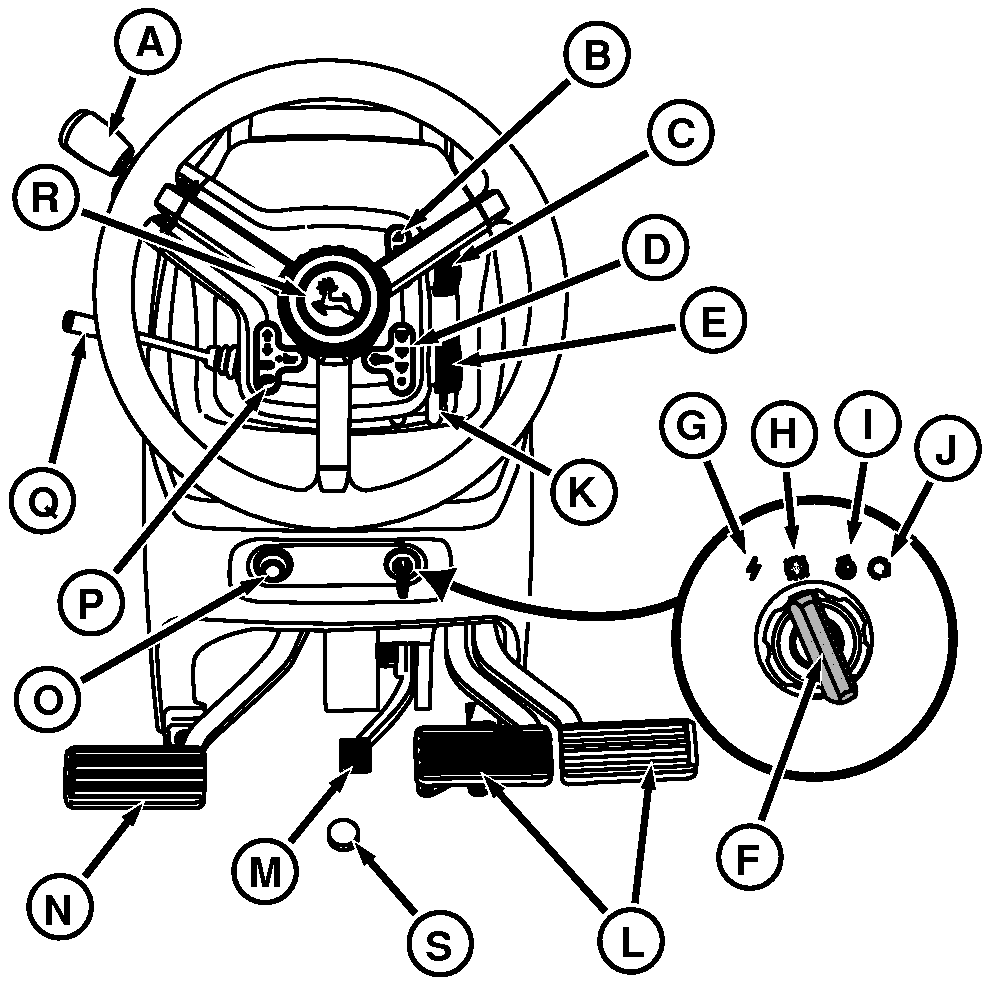

Front Console

RXA0106906-UN-17MAR10

Front Console

A - Left-Hand Reverser (If Equipped)

B - Light Selection Cluster

C - Light Selector Knob

D - Windshield Wiper Cluster

E - Windshield Wiper Control Knob

F - Key Switch

G - Accessories

H - OFF

I - Run

J - Start

K - Steering Column Tilt Release Lever

L - Brake Pedals

M - Steering Wheel Tilt Release

N - Clutch Pedal

O - Starting Aid Switch (If Equipped)

P - High/Low Beam Icon

Q - Turn Signal Lever

R - Steering Wheel Telescope Release

S - Differential Lock
