Adjusting CommandARM™ Position

1. Loosen CommandARM™ controls Fore/Aft Knob (A) and slide CommandARM™ controls forward or rearward to desired position.

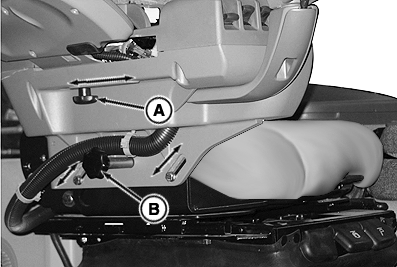

   RXA0110926-UN-14SEP10

   Right-Hand Side Shown

   A - CommandARM™ Controls Fore/Aft Knob

   B - CommandARM™ Raise And Lower Knob

---




2. Loosen CommandARM™ Raise/Lower Knob (B) to raise left console to desired height position.

3. Hand tighten knobs after making desired adjustment.
