Mounting StarFire Receiver
CAUTION:

RXA0107026-UN-31MAR10

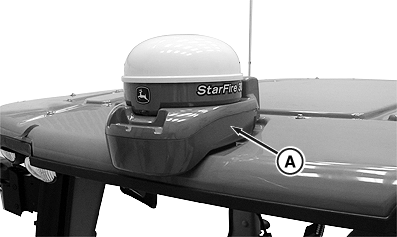

StarFire Receiver Mounted on StarFire Receiver
Bracket

RXA0107027-UN-31MAR10

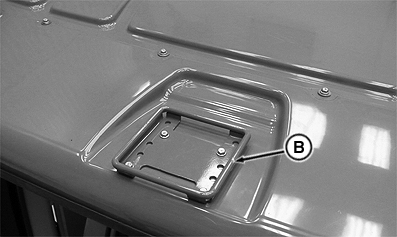

StarFire Receiver Bracket
A - StarFire Receiver
B - StarFire Receiver Bracket
Falling while installing or removing a global
positioning receiver can cause serious injury. Use a ladder or platform
to easily reach a mounting location.
Use sturdy and secure footholds and hand holds. Do not install
or remove the receiver in wet or icy conditions.
Mount StarFire receiver (A) on StarFire receiver bracket (B).
NOTE: Refer to your John Deere dealer or to StarFire receiver
installation instructions for further compatibility. See
your John Deere dealer for compatible adapter harnesses.
|
|
OURX935,000025E-19-20110308
|
|
