Connecting AutoTrac Assisted Steering System (If Equipped)

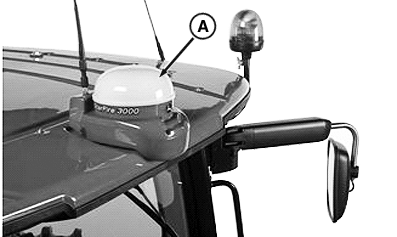

RXA0109998-UN-20AUG10

StarFire Receiver

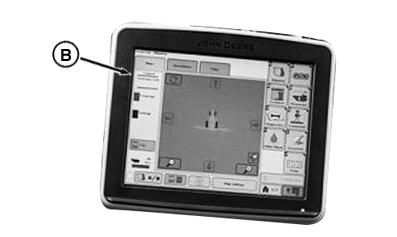

RXA0110000-UN-20AUG10

GreenStar Display 2630

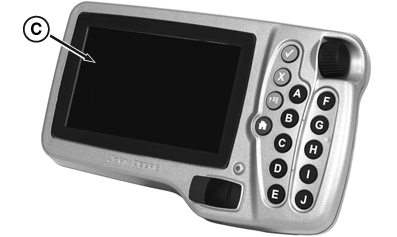

RXA0100708-UN-26FEB09

GreenStar Display 1800

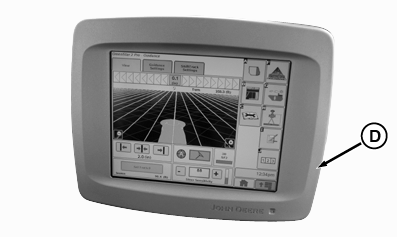

RXA0084306-UN-26SEP05

GreenStar Display 2600

A - Position Receiver

B - GreenStar Display 2630

C - GreenStar Display 1800

D - GreenStar Display 2600

NOTE: Electro-hydraulic steering is required for AutoTrac to function.

Refer to AutoTrac Operator's Manual for detailed instructions.

• AutoTrac system utilizes StarFire position receiver (A) and GreenStar Display 2630 (B)¹ to assist operator in steering tractor.
• Operator must turn vehicle at the end of each pass and to go around any field obstacles. Steering control is obtained by simply turning steering wheel.

NOTE: See your John Deere dealer for compatible adapter harnesses.
