Adjusting Load/Depth Control (Draft Response)

NOTE:

RXA0107324
RXA0107324-UN-16APR10

RXA0113353
RXA0113353-UN-11FEB11

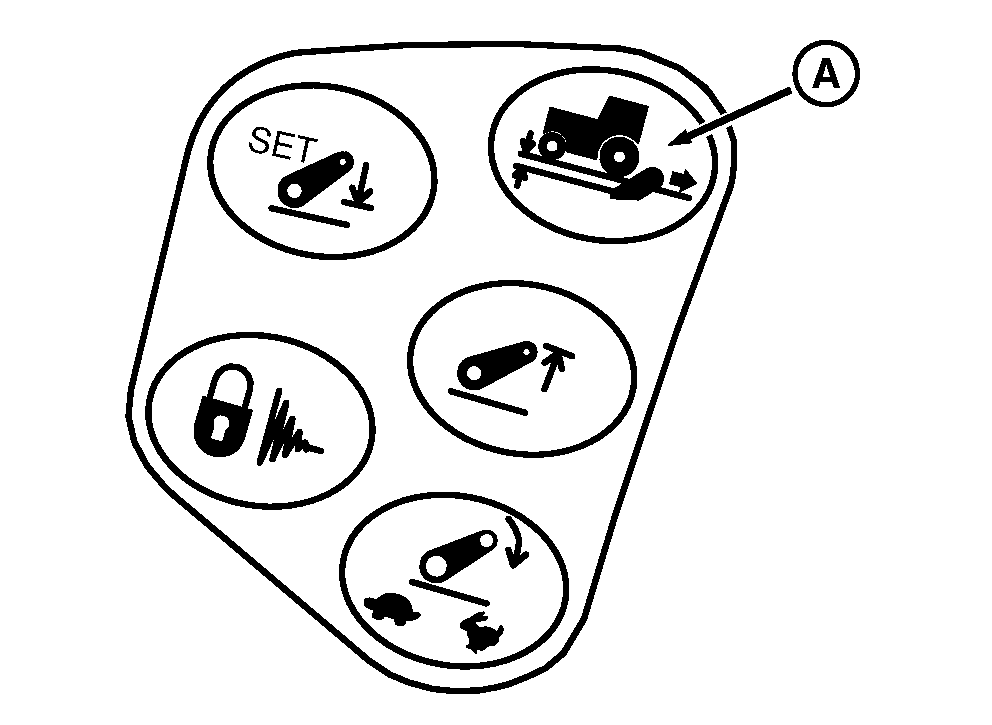

A - Load Depth Settings Shortcut Button

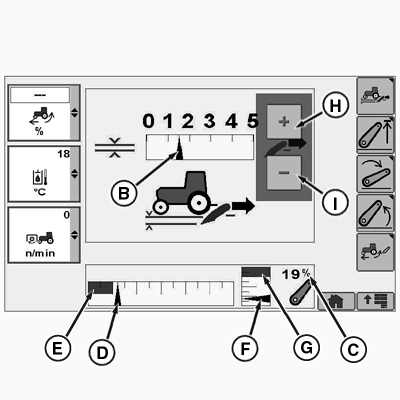

B - Draft Response Settings Indicator

C - Hitch Position Value

D - Commanded Depth Indicator

E - Saved Operating Depth Indicator

F - Hitch Position Indicator

G - Hitch Upper Limit Setting

H - Touchscreen Increase Value (If Equipped)

I - Touchscreen Decrease Value (If Equipped)

Load/depth adjustment changes draft responsiveness only. Operating depth is set with hitch lever.

  1. Select Load/Depth shortcut button (A).

  2. Set Load Depth Indicator (B) to desired setting.

    • Zero draft response provides ”position” control (See Using Position Control.)
    • Higher settings are used for ”draft” control (See Using Draft Control.)

    • Changes to draft response setting take place immediately.
