Adjusting Hitch Drop Rate

IMPORTANT: Excessive drop speed may cause injury or machine damage. Fully lowering implement should take at least two seconds.

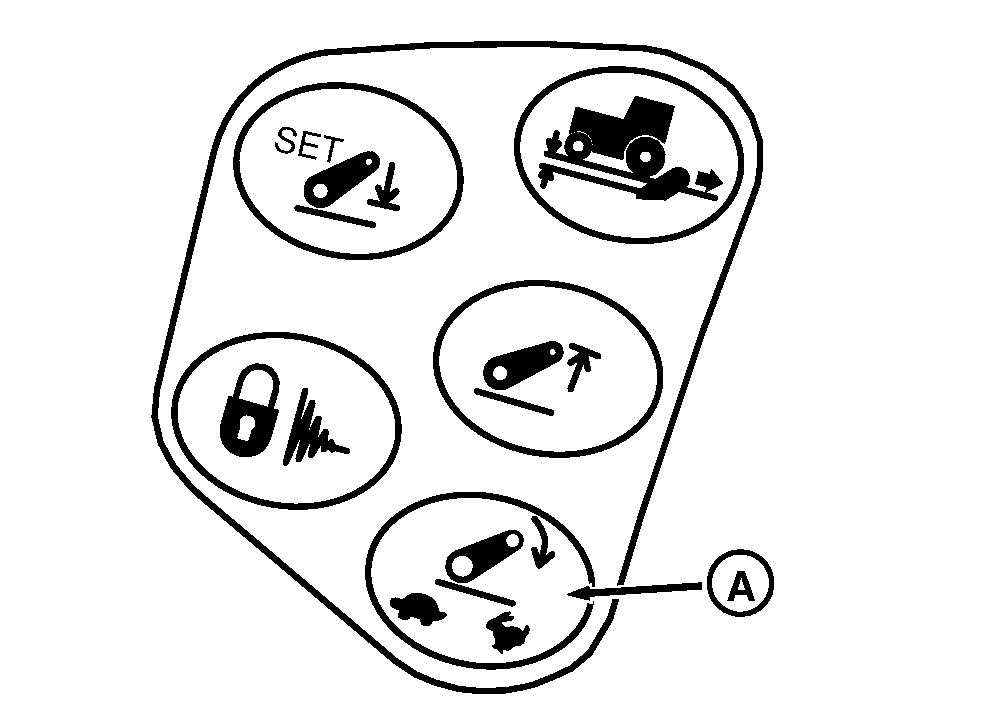

1. Press drop rate shortcut button (A).


   RXA0107326-UN-16APR10


   RXA0113357-UN-11FEB11

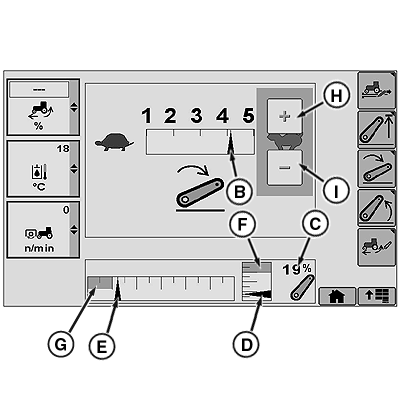

   A - Hitch Drop Rate Shortcut Button

   B - Hitch Response Indicator

   C - Hitch Position Value

   D - Position Indicator

   E - Commanded Depth Indicator

   F - Upper Set Limit

   G - Stored Depth Indicator

   H - Touchscreen Increase Value (If Equipped)

   I - Touchscreen Decrease Value (If Equipped)

---




2. Observe display. Drop rate setting is represented by hitch response indictor (B).

   NOTE: Changes to rate of drop setting take place immediately.
