Adjusting Hitch Raise Rate

IMPORTANT: Excessive raise speed may cause injury or machine damage. Fully raising implement should take at least two seconds.

1. At the CommandCenter™ Main Menu select Hitch icon.

   Press raise rate softkey (A).


   RXA0116561-UN-16MAY11

   CommandCenter Main Menu → Hitch

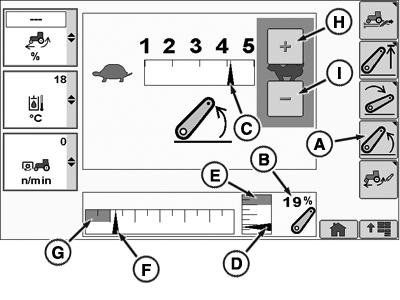

   RXA0113359-UN-09MAY11

   A - Hitch Raise Rate Softkey

   B - Hitch Position Value

   C - Hitch Response Indicator

   D - Position Indicator

   E - Upper Set Limit

   F - Commanded Depth Indicator

   G - Stored Depth Indicator

   H - Touchscreen Increase Value (If Equipped)

   I - Touchscreen Decrease Value (If Equipped)

---




2. Observe display. Raise rate setting is indicated by Hitch Response Indicator (C).

   NOTE: Changes to raise rate take place immediately.
