Gauges—Coolant Temperature, Engine Oil Pressure, and Fuel Level

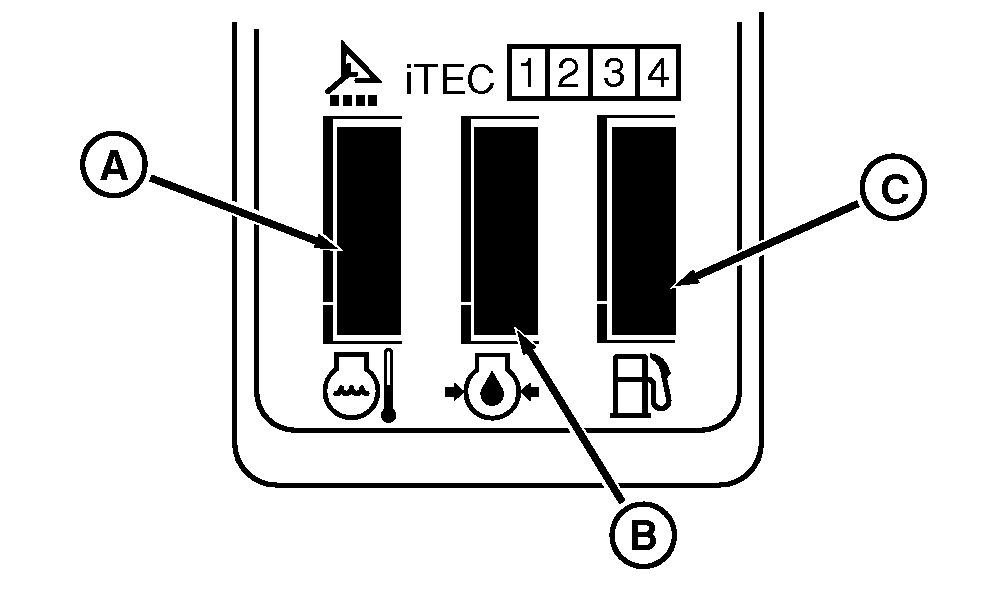

RXA0099154-UN-27JAN09

A - Coolant Temperature Gauge

B - Engine Oil Pressure Gauge

C - Fuel Level Gauge

A—Coolant Temperature Gauge: Shows engine coolant temperature between 40 °C — 120 °C (104 °F—248 °F). All segments are off when coolant temperature is below 40 °C (104 °F). All segments are lit when temperature is 120 °C (248 °F) and above.

B—Engine Oil Pressure Gauge: Shows engine oil pressure, between 8—320 kPa (1—46 psi). All segments are off when oil pressure is low, 0—7 kPa (0—1 psi). All segments are lit when pressure is 320 kPa (46 psi) and above.

C—Fuel Level Gauge: Displays fuel level in tank. Each lighted segment represents 4% of the fuel tank total capacity. When fuel tank is full, all segments are lit. When only the bottom segment is lit, the tank is nearly empty with approximately 40—60 L (10—15 gal.) remaining.
