Services Included In Daily or 10 Hour Service

NOTE: Normally filters are changed at 1000 hours, annually and either as indicted by CommandCenter™ notification or as required by periodic inspection by the operator. Operating conditions vary greatly and have a large impact on filter condition.

RXA0117838
RXA0117838-UN-12SEP11

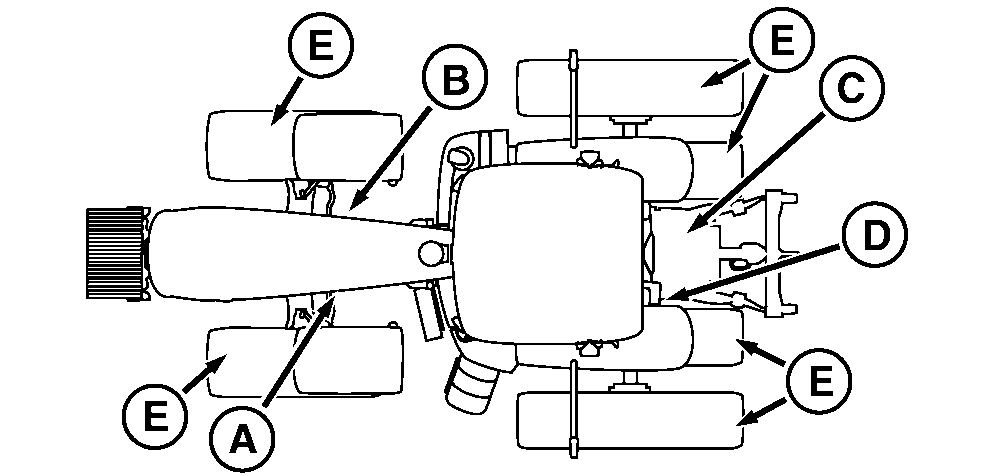

Daily Or 10 Hour Services — Overhead View

  • A — Checking Engine Oil
  • B — Draining Water Separator
  • C — Checking Transmission/Hydraulic Oil Level
  • D — Draining Air Brake Tank
  • E — Check Tire Pressure (weekly)

OURX935,00002B0-19-20120731
