Setting Country, Language, And Units

1. Select Menu button.

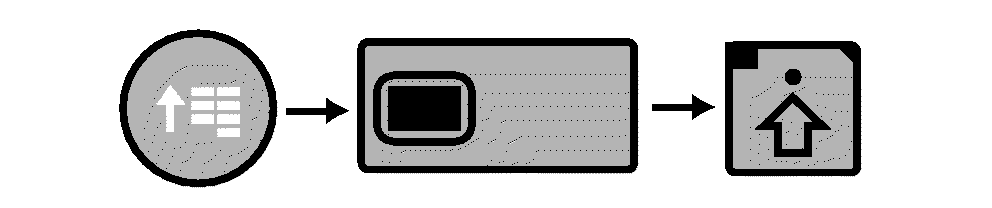

   RXA0116482-UN-12MAY11

   CommandARM Menu Button → Display → Settings

---




2. Select Display.

3. Select Settings softkey.

4. At the Display Settings Regional page, on the first line select country/region tractor is currently used in. Listed below are countries/region that may be selected:

   Argentina	Germany	Russia
   Austria	Greece	Serbia
   Australia & New Zealand	Hungary	Slovakia
   Belgium	Iceland	Suomi
   Bulgaria	Italy	South Africa
   Brazil	Latin America	Sweden
   Canada	Latvia	Switzerland
   Czech Republic	Lithuania	Turkey
   Croatia	Netherlands	Ukraine
   Denmark	Norway	United Kingdom
   Estonia	Poland	USA
   France	Portugal
   Finland	Romania

5. Selecting Units Advanced Settings Box, immediately after the Units drop down box on line four, gives the option to change between either US, Imperial, or metric units for all the lines by selecting this single check box.

   OR

6. On the second line in drop down box, select primary operator's language.

7. On the third line in drop down box, select numeric format desired. i.e. U.S. or metric.

8. On the fourth line in drop down box, select units required either U.S. or metric.

9. On the fifth line in drop down box, select date format desired.

10. In check box at the bottom of the page, select 24 hour clock check box to change to 24 hour clock or leave unchecked for 12 hour clock.

11. Selecting Units Advanced Settings Box, immediately after the Units drop down box on line four, gives the option to change between either U.S., Imperial, or metric units for all the lines by selecting this single check box.
