Default Home Page

1. Select Menu button.


   RXA0116492-UN-11MAY11

   CommandARM Controls Menu Button→Layout Manager Icon


   RXA0116772-UN-16MAY11

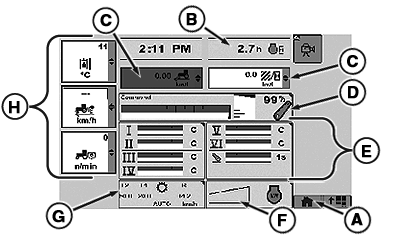

   Layout Manager—Selected Home Page

   A - Home Softkey

   B - Engine Hours

   C - Drop Down Boxes

   D - Rear Hitch

   E - SCVs

   F - Intelligent Power Management

   G - Transmission

   H - Left Region

---




2. Select Layout Manager.

3. Page displayed is the most recent home page used. See Configuring Home page to display optional Home page.

4. Select Home Softkey (A) repeatedly until default Home page displays.

Default Home page is made up of configurable and static areas. Configurable areas are Performance Monitor Settings Options (C), see Using Performance Monitor Main in this section and Left Region boxes (H), see CommandCenter in this section for options.

Default Home page static areas are:

• B — Engine Hours
• D — Rear Hitch
• E — SCV’s
• F — Intelligent Power Management
• G — Transmission
