Using Performance Monitor Main

RXA0116496-UN-11MAY11

Menu Button → Performance Monitor

RXA0106766-UN-02AUG10

Performance Monitor Main Page

RXA0112771-UN-04JAN11

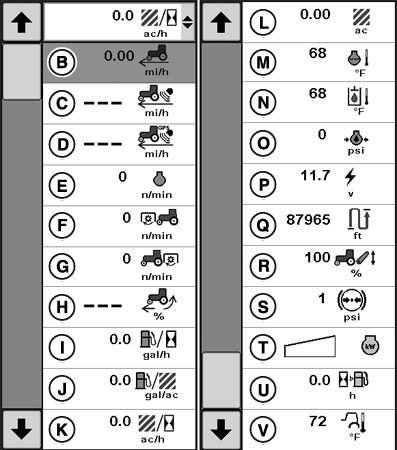

Performance Monitor Settings Options

A - Displayed Performance Monitor Options

B - Ground Speed

C - Radar Speed

D - GPS Speed

E - Engine RPM

F - Front PTO Speed

G - Rear PTO Speed

H - % Wheel Slip

I - Fuel Consumption Per Hour

J - Fuel Consumption Per Area

K - Area Covered Per Hour

L - Total Area Covered

M - Engine Coolant Temperature

N - Hydraulic Oil Temperature

O - Engine Oil Pressure

P - System Voltage

Q - Distance Covered

R - Hitch Position

S - Brake System Pressure

T - Engine Power

U - Hours of Fuel Remaining

V - Ambient Temperature

1. Select Menu button.

2. Select Performance Monitor.

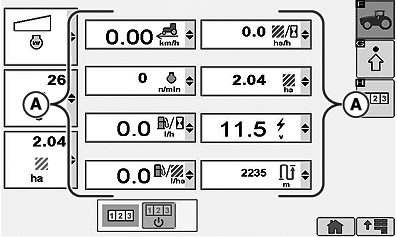

3. When Performance Monitor Main page appears, 8 options are displayed (A). Current settings can be monitored at this time.

4. Selecting the drop down box in any of the 8 displayed options allows operator to select any of the remaining performance monitor options.
