Setting Implement Width and Control Modes—Performance Monitor Settings

RXA0116494-UN-12MAY11

CommandARM Menu Button → Home → Performance Monitor Main Softkey

RXA0117366-UN-14JUN11

Performance Monitor Page

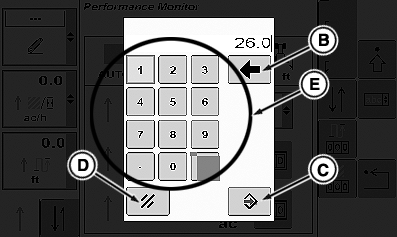

RXA0117364-UN-18MAY11

Performance Monitor Keypad Page

RXA0117367-UN-14JUN11

Area Counter Control Modes

A - Implement Width Softkey

B - Keypad Back Space Button

C - Keypad Enter/Save Button

D - Keypad Cancel Button

E - Keypad Keys

F - Area Counter Control Mode Drop Down Box

G - Manual Mode

H - Switch Mode

I - Auto Mode

J - Rear hitch Mode

K - Front Hitch Mode

L - Rear PTO Mode

M - Front PTO Mode

N - SCV I Mode

O - SCV II Mode

P - SCV III Mode

Q - SCV IV Mode

R - SCV V Mode

S - SCV VI Mode

T - GreenStar

1. Select Menu button. Keypad displays.

2. Select Performance Monitor.

3. Select Performance Monitor Main softkey.

4. Select Implement Width softkey (A).

   NOTE: When inputting implement width, if a number is entered incorrectly, select backspace button (B) or the entire entry is removed by selecting the cancel button (D).

5. Using keypad (E) enter implement width required, then select enter button (C).

Area Counter Control Modes are changed by selecting Area Counter Control Mode Drop Down box, make mode selection.
