Entering Or Editing Equipment Name

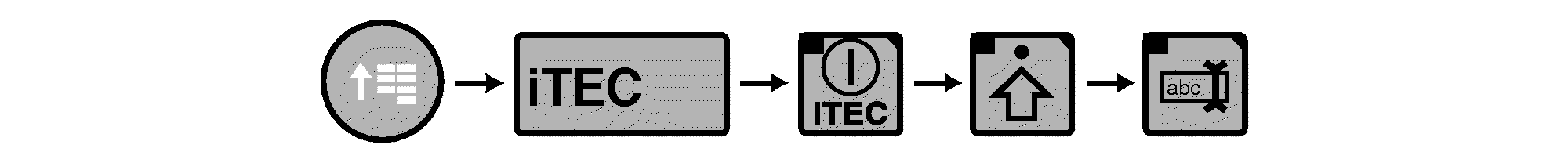

1. Select iTEC


   RXA0116591-UN-12MAY11


   RXA0106095-UN-27JUL10

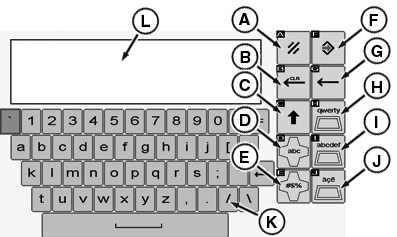

   Editing Page

---




2. SelectiTEC ON/OFF softkey.

3. Select Advanced Settings softkey.

4. Select Edit Implement Name softkey.

5. At the editing page:

   • A—Cancel Softkey allows operator to exit without making changes.
   • B—Clear Editing Box softkey clears editing box.
   • C—Toggles between upper and lower case editing keys.
   • D—Alpha/Numeric Character softkey changes special characters keypad into alpha/numeric keypad option.
   • E—Special Character softkey changes alphabet keypad into special characters keypad option.
   • F—Save/Enter softkey allows operator to enter data to operating page after entry is made in editing box.
   • G—Back Space softkey moves editing box curser back one space.
   • H—Standard English Keyboard softkey allows operator to choose standard English Keyboard.
   • I—ABC-Keyboard softkey allows operator to choose keyboard with alpha/numeric characters in alphabetical order.
   • J—Numbers/Symbols softkey allows operator to input implement name in numbers or symbols.
   • K—Keyboard.
   • L—Editing Box.
