Adjusting Reverse-Forward Set Speed Ratio

Reverse/Forward Ratio can be set to operate independent of each other or from 0.3-to-1.3 times as fast (in 0.1 increments). Forward and Reverse Set Speeds are the same at 1.0 setting (1 to 1 ratio).

Maximum reverse speed is up to 20 km/h (12 mph) regardless of ratio.

RXA0116587
RXA0116587-UN-12MAY11

Transmission → Advanced Settings

RXA0106943
RXA0106943-UN-03AUG10

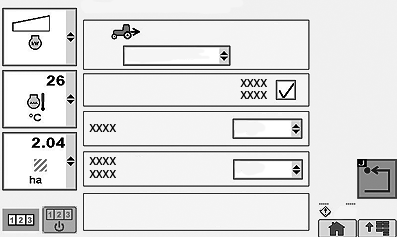

Transmission Advanced Settings Page

RXA0106031
RXA0106031-UN-29JUL10

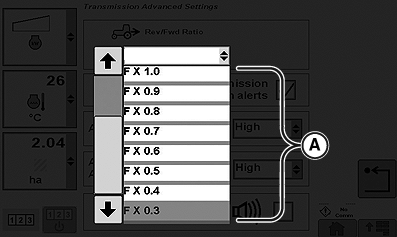

Set Speed Ratio Drop Down Box

A - Set Speed Ratio Drop Down Box

  1. Select Transmission.

  2. Select Advanced Settings softkey.

  3. Select Set Speed Ratio drop down box which will display available options (A).

  4. Select speed ratio from drop down box options.

    Forward Set Speed

    is 4 km/h (2.5 mph)

    and Ratio is:

    Reverse Set Speed

    km/h (mph) is:

    0.3

    1.2 (0.25)

    0.4

    1.6 (1.)

    0.5

    2.0 (1.2)

    0.6

    2.4 (1.5)

    0.7

    2.8 (1.75)

    0.8

    3.2 (2.)

    0.9

    3.6 (2.2)

    1.0

    4.0 (2.5)

    1.1

    4.4 (2.7)

    1.2

    4.8 (3.)

    1.3

    5.2 (3.2)

    Independent

    No ratio because reverse and forward gears function independent of each other.

    Reverse Set Speed is limited to be no more than 5 km/h (3 mph) faster than Forward Set Speed.

  5. Select Show Transmission Calibrations Alerts check box to display transmission calibration alerts.

OURX935,0000307-19-20110517
