Activating Tractor-Implement Automation Equipment

1. Copy full tractor serial number and implement make, model, and serial number before requesting activation code from Stellar Support through dealer.


   RXA0116592-UN-13MAY11

   CommandCenter→Main Menu →TIA

---




2. Give dealer tractor serial number and equipment make, model, and serial number so request can be made to Stellar Support.

3. When dealer responds with 24—26 character activation code from Stellar Support, on CommandCenter select Main Menu button.

4. Select TIA icon.

5. When Tractor-Implement Automation Activation page displays, confirm tractor serial number (B) at top of page.


   RXA0107062-UN-20AUG10

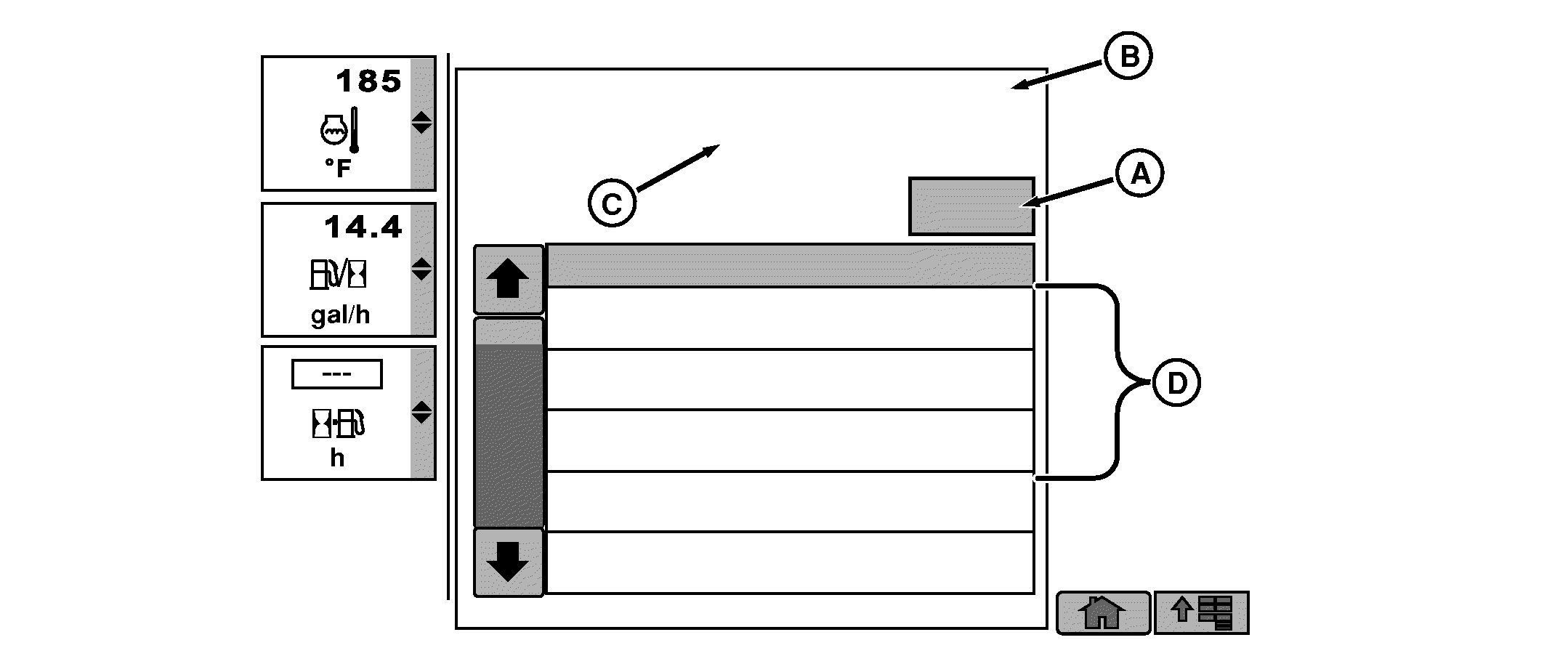

   Tractor-Implement Automation Activation Page

   A - Enter Code Box

   B - Tractor Vehicle Identification Number Location

   C - Confirmation Code Location

   D - Component List

---




6. Select Enter Code box (A). See Entering Or Editing Equipment Name in Intelligent total Equipment Control (iTEC) Section of this Operator's Manual.

   NOTE: Some Tractor-Implement Automation Activation page keyboard characters on keyboard are grayed out and are not used in activation codes. If received activation code includes any characters that are grayed out on Tractor-Implement Automation Activation page keyboard, request dealer reconfirm activation code.

7. Using keyboard, enter activation code, then select Save/Enter softkey.

8. If Activation Code is entered correctly, Confirmation Code appears at center top of page (C), and Code Accepted is displayed.

   NOTE: If any response codes not covered in table are received after entering an Activation Code, double check the code, retry entering it and if that does not work, contact the dealer.

9. See table for common Response Codes and Text descriptions if there is an error in Activation Code.

   Response Codes, Text Descriptions, And Corrective Actions
   Common Response Codes	Text Displayed	Corrective Action
   0	Code Accepted	None Required
   4	Implement Not Available to Deactivate	Implement already deactivated
   5	Implement Already Activated	None Required, implement should work as expected
   6 and 11	Space Unavailable for Activation	Contact your dealer for assistance
   17	Demonstration Activation Replaced With Permanent Activation	None Required

10. NOTE: Up to 5 implement names can be viewed on Tractor-Implement Automation Activation page at any given time. If additional pages are required, use Page Up and Page Down softkeys displayed in the Tractor-Implement Automation Activation page right region.

    NOTE: At this point, the Tractor-Implement Automation Activation page component list (D) displays Unknown Implement #. (See also Operating Tractor Implement Automation in this section.)
