Operating Tractor Implement Automation

1. Connect TIA equipment to tractor via ISO connection.


   RXA0116592-UN-13MAY11

   Main Menu


   RXA0109713-UN-18AUG10

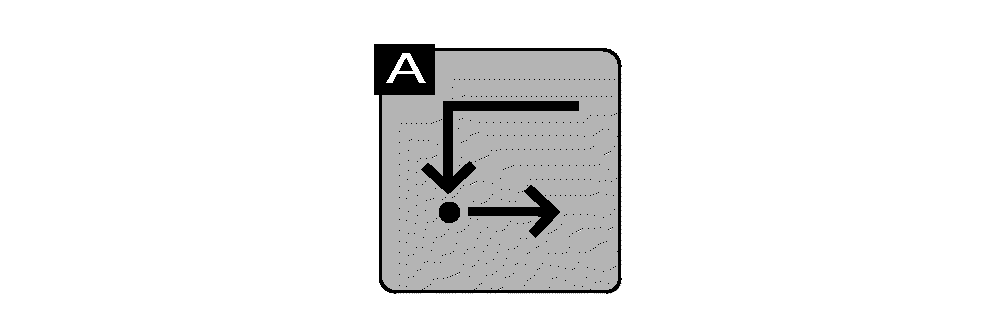

   TIA Softkey


   RXA0110017-UN-14SEP10

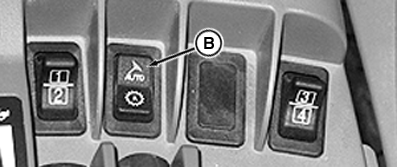

   AutoTrac Switch

   A - TIA Softkey

   B - AutoTrac Switch

---




2. Select Main Menu button.

   NOTE: See Configuring Home Page to display TIA softkey on Tractor-Implement Automation Activation page.

3. At CommandCenter main menu, Select TIA Icon.

4. Select either TIA softkey (A) or AutoTrac switch (B).

5. Unknown Implement # previously displayed in Tractor-Implement Automation Activation page component list changes to the specific Implement name.

6. Follow implement Operator's Manual instructions to operate implement.
