Checking Engine Oil

RXA0117357-UN-18MAY11

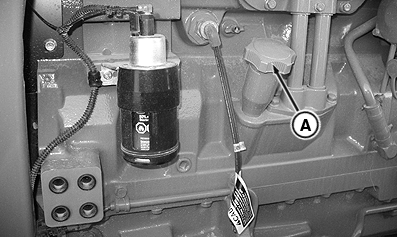

Remove Dipstick

RXA0117359-UN-18MAY11

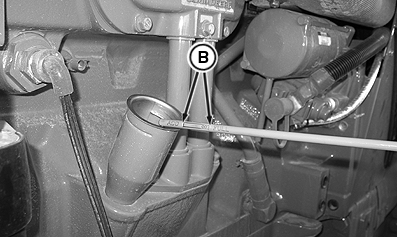

Safe Operating Rectangle

A - Dip Stick

B - Cross-Hatch Area

With tractor on level ground and before starting tractor, remove dipstick (A) to check oil level. Oil level should be in the rectangle (B) on dipstick.

IMPORTANT: Do not operate engine with oil level above the top or below the bottom of rectangle on dipstick. Oil levels anywhere within rectangle are considered in the acceptable operating range.

If oil is below rectangle on dipstick, add oil.
