Primary Brake Valve Accumulator (If Equipped with ILS Front Axle)

RXA0114903-UN-14JUN11

Brake Accumulator

RXA0107870-UN-25MAY10

Brake Accumulator

RXA0068157-UN-22JUN03

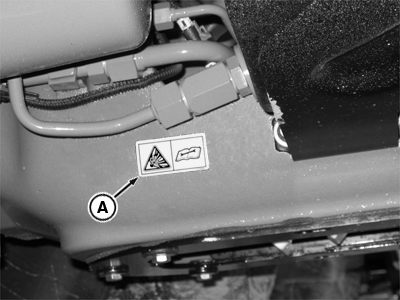

A—Accumulator Warning

Caution: Accumulators maintain hydraulic fluid under pressure for front axle suspension.

Read Technical Manual and follow all safety precautions before performing maintenance on accumulator.

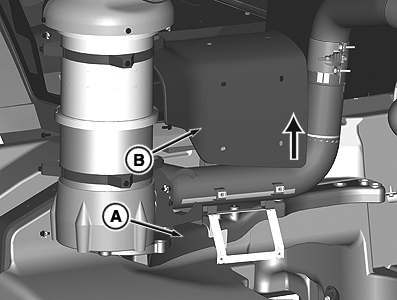

The caution label is located on the exhaust support behind cover (B).
