Navigating The CommandCenter™—Read Me First

NOTE:

RXA0099737-UN-14JUL10

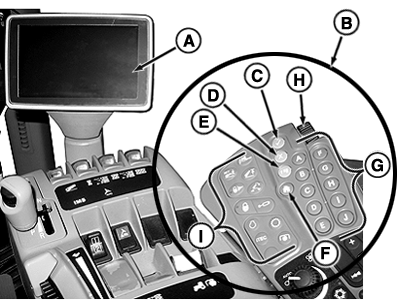

CommandARM With CommandArm Controls And CommandCenter

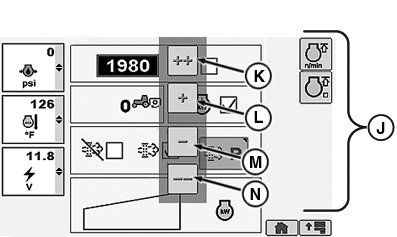

RXA0110755-UN-16SEP10

Softkeys

The CommandCenter (A) attached to CommandArm allows operator to view selected pages required to operate tractor.

There are three methods of navigating through CommandCenter pages:

1. Rotate CommandArm Controls (B) thumb wheel (H) to a specific box or softkey (J) and press Confirm button (C) to direct tractor to perform a function. Press Cancel button (D) to void a command.
2. NOTE: CommandArm softkeys, “A” through “J” (G) correlate to softkeys (J) on CommandCenter pages.
   Use softkeys to quickly navigate through system to a page, then use thumb wheel to specific portion of a page.
3. For tractors equipped with Touchscreen CommandCenter touch softkeys, buttons, or icons to make selection. To adjust setting on bargraph, use increase or decrease value buttons. For input boxes use either key pad, or select input box, when input box highlights, scroll thumb wheel to desired value.

Primary CommandArm Controls navigational tools listed below:

A — CommandCenter allows operator to monitor and receive immediate visual feed back on all monitored functions associated with tractor operations.

B — CommandArm Controls is a key pad made up of buttons, shortcut keys and softkeys allowing operator to manage tractor functions.

C — Confirm Button used to select highlighted item.

D — Cancel Button cancels or deselects action previously selected.

E — Menu Button returns operator to the CommandCenter Menu.

F — Home Button returns operator to home page.

G — Softkey Buttons activate softkeys.

H — Thumb Wheel allows operator to perform specific functions such as changing information in input boxes. Rotating thumb wheel forward raises input box values. Rotating thumb wheel rearward lowers input box values.

I — Shortcut Buttons allows operator more direct alternative method of navigating to specific pages without going through CommandCenter Main menu.

J –– Softkeys allows operator quick access to a specific page or curser placement on page.

K –– N Increase/Decrease Value Buttons For tractors equipped with Touchscreen, allows operator to make setting adjustments by simply touching appropriate button. The ++ and - - allows operator to make larger incremental changes when adjusting than touching + or - buttons. For areas that require tighter adjustments, such as the rear hitch, only the + and - buttons are available.
